A good PCB layout for the PI7C9X3G606GPBFCAEX would involve keeping the signal traces short and direct, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure signal integrity, it's essential to maintain a controlled impedance environment, use differential signaling, and keep the signal traces away from noise sources. Additionally, using a termination resistor and a capacitor at the receiver end can help to reduce signal reflections and improve signal quality.
The PI7C9X3G606GPBFCAEX has an operating temperature range of -40°C to 85°C. However, it's recommended to operate the device within a temperature range of 0°C to 70°C for optimal performance and reliability.
Yes, the PI7C9X3G606GPBFCAEX is a PCIe Gen3 switch, and it's designed to meet the PCIe specification. However, it's essential to ensure that the device is used in a PCIe-compliant system and that the system is designed to meet the PCIe specification.
The typical power consumption of the PI7C9X3G606GPBFCAEX is around 2.5W. However, the actual power consumption may vary depending on the operating frequency, voltage, and other factors. It's recommended to consult the datasheet and application notes for more information on power consumption.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PI7C9X3G606GPBFCAEX Overview

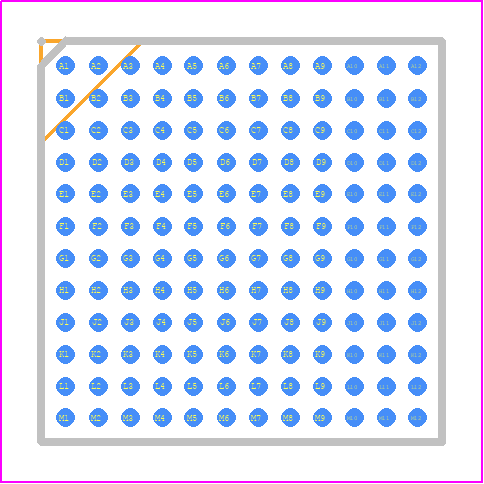

Use the download button to access the PI7C9X3G606GPBFCAEX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PI7C9,
or try a keyword search, such as Bus Controllers
