For optimal performance, it is recommended to follow the PCB layout guidelines provided in the datasheet, including keeping the signal traces short and away from noise sources. Additionally, a thermal pad on the bottom of the package should be connected to a solid ground plane to dissipate heat effectively.
To ensure signal integrity and minimize jitter, it is recommended to use a well-designed PCB with controlled impedance, minimize signal trace lengths, and use signal termination resistors as specified in the datasheet. Additionally, the use of a clock signal with a high signal-to-noise ratio and a stable voltage supply can also help to minimize jitter.
The recommended power sequencing is to power up the VCCIO and VCC cores simultaneously, followed by the VREF pin. The voltage ramp-up time should be slower than 10 ms to prevent damage to the device. It is also recommended to follow the power-up sequence and voltage ramp-up times specified in the datasheet to ensure proper device operation.
To handle hot-swapping and power cycling, it is recommended to use a power switch or a reset circuit to ensure that the device is properly powered down before removing power. Additionally, the use of a voltage supervisor or a power-on reset circuit can help to ensure that the device is properly reset after power-up.
The PI7C9X3G606GPCFCAEX has built-in ESD protection diodes on all pins, which can withstand up to 2 kV of ESD voltage. To prevent latch-up, it is recommended to follow proper PCB design guidelines, use a well-regulated power supply, and avoid voltage overshoots or undershoots during power-up or power-down.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PI7C9X3G606GPCFCAEX Overview

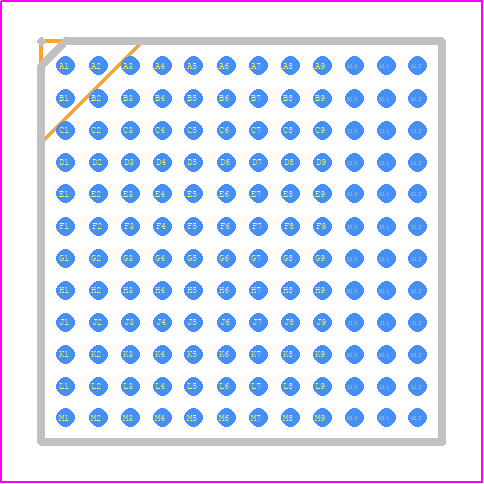

Use the download button to access the PI7C9X3G606GPCFCAEX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PI7C9,
or try a keyword search, such as Bus Controllers
