PI7C9X3G808GPBHFCEX - Diodes Incorporated

Description: Packet Switch, 8-Port/8-Lane Interface 196-HFCBGA (15x15)

Download PI7C9X3G808GPBHFCEX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

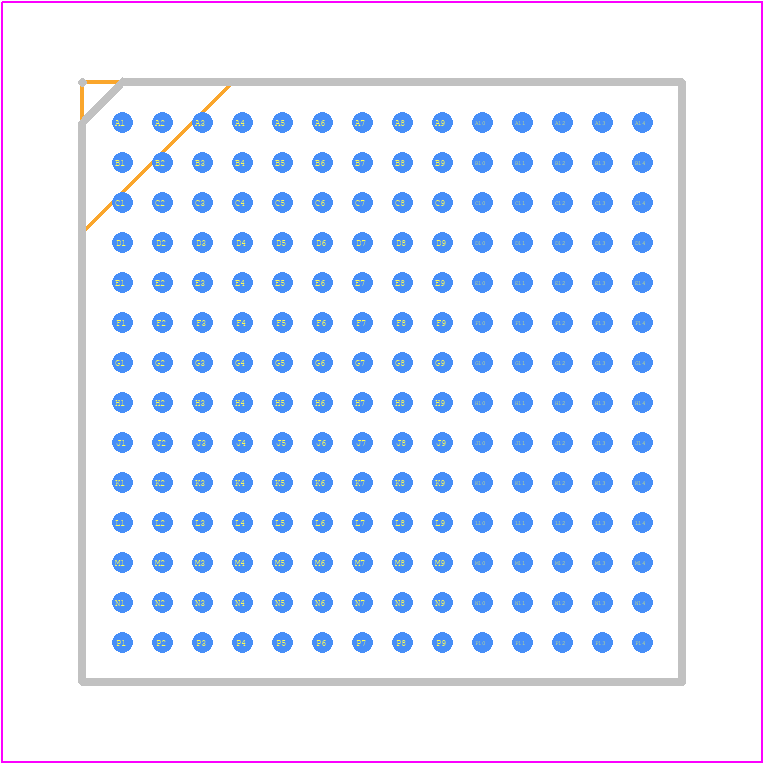

PI7C9X3G808GPBHFCEX - Diodes Incorporated PCB footprint - BGA - BGA - 196-pin HFCBGA 15mm x 15mm
click to zoom
3D Models
PI7C9X3G808GPBHFCEX - Diodes Incorporated  - 3D model - BGA - 196-pin HFCBGA 15mm x 15mm
click to zoom

PI7C9X3G808GPBHFCEX Details

  • Manufacturer Part Number:

    PI7C9X3G808GPBHFCEX

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    HFCBGA-196

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    0

  • Bus Compatibility:

    I2C; PCI; SMBUS

  • Clock Frequency-Max:

    100 MHz

  • JESD-30 Code:

    S-PBGA-B196

  • Length:

    15 mm

  • Number of Terminals:

    196

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Equivalence Code:

    BGA196,14X14,40

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY

  • Packing Method:

    TR

  • Seated Height-Max:

    2.94 mm

  • Supply Voltage-Max:

    0.99 V

  • Supply Voltage-Min:

    0.9 V

  • Supply Voltage-Nom:

    0.95 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Width:

    15 mm

  • uPs/uCs/Peripheral ICs Type:

    BUS CONTROLLER, I2C

PI7C9X3G808GPBHFCEX Frequently Asked Questions (FAQs)

  • The PI7C9X3G808GPBHFCEX has an operating temperature range of -40°C to 85°C.
  • To ensure signal integrity, it is recommended to use a signal integrity analysis tool to simulate the signal transmission and optimize the PCB design. Additionally, using a low-loss PCB material, minimizing trace lengths, and using signal termination resistors can help maintain signal integrity.
  • The recommended power-up sequence for the PI7C9X3G808GPBHFCEX is to power up the VCCIO and VCC cores simultaneously, followed by the input clocks. This ensures proper device initialization and prevents potential latch-up conditions.
  • To handle hot-swapping with the PI7C9X3G808GPBHFCEX, it is recommended to use a hot-swap controller or a power switch with inrush current limiting to prevent voltage droop and ensure reliable operation.
  • For optimal performance, it is recommended to follow a star-topology layout for the power and ground pins, and to route the high-speed signals away from the power and ground planes. Additionally, using a 4-layer PCB with a solid ground plane can help reduce noise and improve signal integrity.
