PIC12C509A-04I/P - Microchip

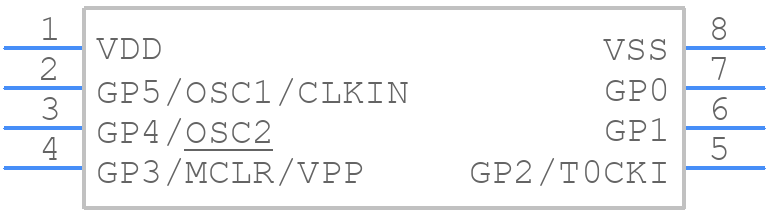

PIC12C509A-04I/P Details

• Manufacturer Part Number:

  PIC12C509A-04I/P

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Not Recommended

• Part Package Code:

  DIP

• Package Description:

  0.300 INCH, PLASTIC, DIP-8

• Pin Count:

  8

• Manufacturer Package Code:

  PDIP-8

• Country Of Origin:

  Thailand

• ECCN Code:

  EAR99

• HTS Code:

  8542.31.00.01

• Factory Lead Time:

  8 Weeks

• Date Of Intro:

  1996-05-10

• Manufacturer:

  Microchip Technology Inc

• YTEOL:

  3

• Has ADC:

  NO

• Bit Size:

  8

• Boundary Scan:

  NO

• CPU Family:

  PIC12

• Clock Frequency-Max:

  4 MHz

• DAC Channels:

  NO

• DMA Channels:

  NO

• Format:

  FIXED POINT

• Integrated Cache:

  NO

• JESD-30 Code:

  R-PDIP-T8

• JESD-609 Code:

  e3

• Length:

  9.4 mm

• Low Power Mode:

  YES

• Number of I/O Lines:

  6

• Number of Terminals:

  8

• Number of Timers:

  2

• On Chip Data RAM Width:

  8

• On Chip Program ROM Width:

  12

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  NO

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP8,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Qualification Status:

  Not Qualified

• RAM (bytes):

  41

• ROM (words):

  1024

• ROM Programmability:

  OTPROM

• Seated Height-Max:

  4.06 mm

• Speed:

  4 MHz

• Supply Current-Max:

  1.4 mA

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  5 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  NO

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Width:

  7.62 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER, RISC
