PIC12C671-10/P - Microchip

Description: In-Circuit Serial Programming (ICSP™) • Internal 4 MHz oscillator with programmable calibration • Selectable clockout • Power-on Reset (POR) • Power-up Timer (PWRT) and Oscillator Start-up Timer (OST) • Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation • Programmable code protection • Power saving SLEEP mode • Interrupt-on-pin change (GP0, GP1, GP3) • Internal pull-ups on I/O pins (GP0, GP1, GP3) • Internal pull-up on MCLR pin • Selectable oscillator options: - INT

Download PIC12C671-10/P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

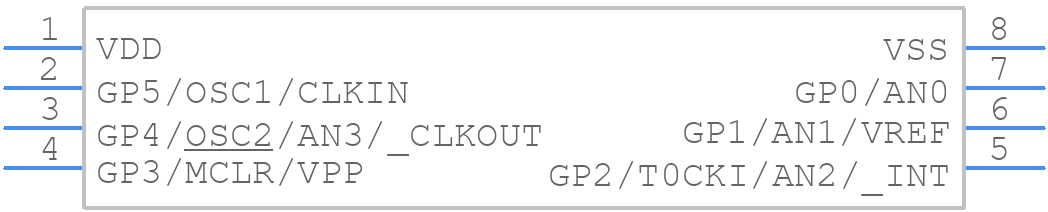

PIC12C671-10/P - Microchip - PCB symbol
click to zoom
PCB Footprints
PIC12C671-10/P - Microchip PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 8-LEAD PLASTIC DUAL IN-LINE (P) -300MIL (PDIP)
click to zoom
3D Models
PIC12C671-10/P - Microchip - 3D model - Dual-In-Line Packages - 8-LEAD PLASTIC DUAL IN-LINE (P) -300MIL (PDIP)
click to zoom

PIC12C671-10/P Details

  • Manufacturer Part Number:

    PIC12C671-10/P

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    DIP

  • Package Description:

    0.300 INCH, PLASTIC, MS-001, DIP-8

  • Pin Count:

    8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Date Of Intro:

    1997-03-24

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    3

  • Has ADC:

    YES

  • Bit Size:

    8

  • Boundary Scan:

    NO

  • CPU Family:

    PIC

  • Clock Frequency-Max:

    10 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    NO

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    9.46 mm

  • Number of I/O Lines:

    6

  • Number of Terminals:

    8

  • On Chip Program ROM Width:

    14

  • Operating Temperature-Max:

    70 °C

  • PWM Channels:

    NO

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • RAM (bytes):

    128

  • ROM (words):

    1024

  • ROM Programmability:

    OTPROM

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    4.32 mm

  • Speed:

    10 MHz

  • Supply Current-Max:

    30 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

PIC12C671-10/P Frequently Asked Questions (FAQs)

  • The maximum clock frequency that can be used with the internal oscillator is 4 MHz. However, it's recommended to use a clock frequency of 3.5 MHz or less to ensure reliable operation.
  • The BOR voltage is not configurable on the PIC12C671-10/P. It is fixed at 3.7V. However, you can disable the BOR feature by setting the BOR bit in the Configuration Word to '0'.
  • No, the ADC and comparator share the same analog input pins, so you cannot use them simultaneously. You need to select which function to use on a particular pin using the ANSEL register.
  • You can implement a delay using the _delay() function provided in the XC8 compiler, which uses the internal oscillator frequency to generate the delay. Alternatively, you can use a software delay loop using the TMR0 timer.
  • The maximum current that can be sourced or sunk by the I/O pins is 25 mA. However, it's recommended to limit the current to 10 mA or less to ensure reliable operation and prevent overheating.
