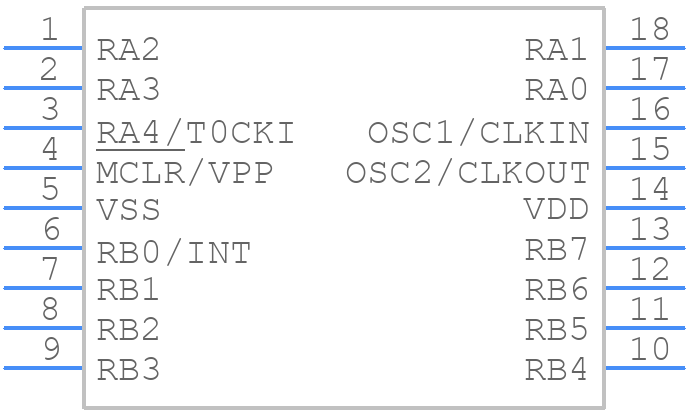

PIC16C61-04/SO - Microchip

PIC16C61-04/SO Details

• Manufacturer Part Number:

  PIC16C61-04/SO

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  SOIC

• Package Description:

  0.300 INCH, PLASTIC, SO-18

• Pin Count:

  18

• HTS Code:

  8542.31.00.15

• Manufacturer:

  Microchip Technology Inc

• YTEOL:

  0

• Has ADC:

  NO

• Bit Size:

  8

• Boundary Scan:

  NO

• CPU Family:

  PIC

• Clock Frequency-Max:

  4 MHz

• DAC Channels:

  NO

• DMA Channels:

  NO

• JESD-30 Code:

  R-PDSO-G18

• Length:

  11.544 mm

• Number of I/O Lines:

  13

• Number of Terminals:

  18

• On Chip Program ROM Width:

  14

• Operating Temperature-Max:

  70 °C

• PWM Channels:

  NO

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP18,.4

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Qualification Status:

  Not Qualified

• RAM (bytes):

  36

• ROM (words):

  1024

• ROM Programmability:

  OTPROM

• Screening Level:

  ISO/TS-16949

• Seated Height-Max:

  2.642 mm

• Speed:

  4 MHz

• Supply Current-Max:

  3.3 mA

• Supply Voltage-Max:

  6 V

• Supply Voltage-Min:

  4.5 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Width:

  7.5055 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER, RISC
