PIC16F15323-E/P - Microchip

Description: 8-bit Microcontrollers - MCU 3.5KB, 256B RAM, 4xPWMs, Comparator, DAC, ADC, 4xCLC, CWG, EUSART, SPI/I2C

Download PIC16F15323-E/P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

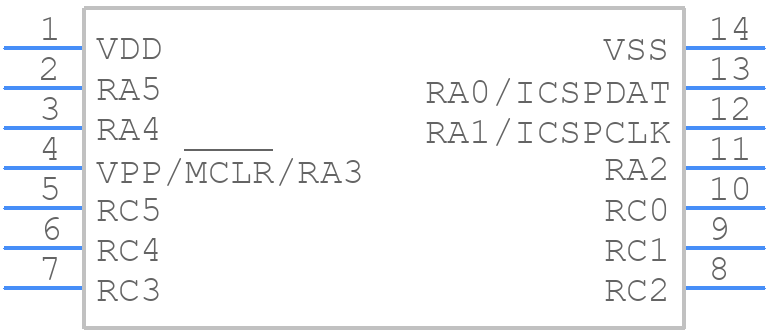

PIC16F15323-E/P - Microchip - PCB symbol
click to zoom
PCB Footprints
PIC16F15323-E/P - Microchip PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 14 lead plastic dual-in line (p)-300 mil body {pdip}
click to zoom
3D Models
PIC16F15323-E/P - Microchip - 3D model - Dual-In-Line Packages - 14 lead plastic dual-in line (p)-300 mil body {pdip}
click to zoom

PIC16F15323-E/P Details

  • Manufacturer Part Number:

    PIC16F15323-E/P

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    14

  • Manufacturer Package Code:

    PDIP-14

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    18

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

PIC16F15323-E/P Frequently Asked Questions (FAQs)

  • The maximum clock frequency of the PIC16F15323-E/P is 32 MHz.
  • The PIC16F15323-E/P has 14 KB of flash memory.
  • Yes, the PIC16F15323-E/P has a low-power sleep mode that can reduce power consumption to as low as 20 nA.
  • Yes, the PIC16F15323-E/P has 12-bit, 10-channel ADCs.
  • Yes, the PIC16F15323-E/P is rated for operation up to 125°C.
