Part Image

PIC16F1823T-I/SL - Microchip

Description: MICROCHIP - PIC16F1823T-I/SL - 8 Bit MCU, PIC16 Family PIC16F18xx Series Microcontrollers, 32 MHz, 3.5 KB, 128 Byte, 14 Pins, SOIC

Download ECAD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

PCB Footprints

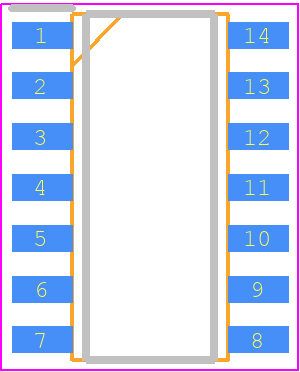

PIC16F1823T-I/SL - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-14
click to zoom

3D Models

PIC16F1823T-I/SL - Microchip  - 3D model - Small Outline Packages - SOIC-14
click to zoom

Risk Rank

PIC16F1823T-I/SL — Microchip
2.2 - Low Design Risk
Design Risk Rank is determined by in-depth analysis across multiple factors, including part availability, functional equivalents, lifecycle and more. Learn more →

Parts related to PIC16F1823T-I/SL

Showing 0 results

PIC16F1823T-I/SL Alternates

Showing results

Image Part Number Design Risk Rank
Part Image PIC16F1823-I/SL Microchip Technology Inc

8-BIT, FLASH, 32 MHz, RISC MICROCONTROLLER, PDSO14, 3.90 MM, PLASTIC, SOIC-14

Part Image PIC16F1823-E/SL Microchip Technology Inc

8-BIT, FLASH, 32 MHz, RISC MICROCONTROLLER, PDSO14, 3.90 MM, PLASTIC, SOIC-14

Part Image PIC16F1823-E/SLVAO Microchip Technology Inc

RISC Microcontroller, 8-Bit, FLASH, 32MHz, CMOS, PDSO14

Part Image PIC16F1823T-E/SL Microchip Technology Inc

8-BIT, FLASH, 32 MHz, RISC MICROCONTROLLER, PDSO14, 3.90 MM, PLASTIC, SOIC-14

Part Image PIC16F1823T-E/SLVAO Microchip Technology Inc

RISC Microcontroller, 8-Bit, FLASH, 32MHz, CMOS, PDSO14

For a full list of alternate parts for PIC16F1823T-I/SL, check out FindChips.com
