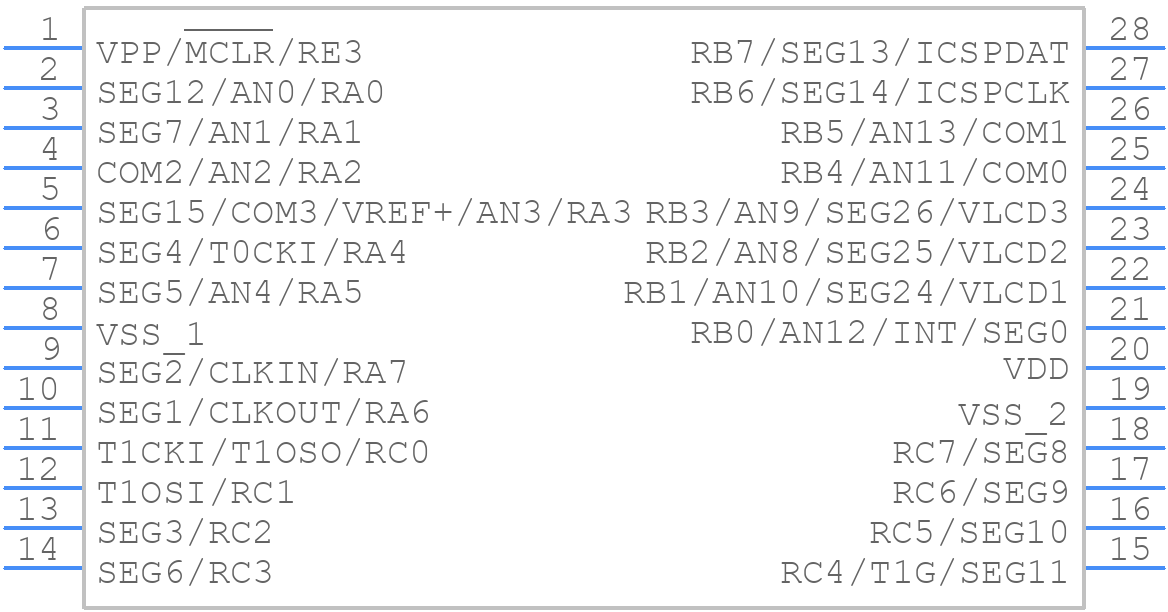

PIC16LF1903T-I/SO - Microchip

PIC16LF1903T-I/SO Details

• Manufacturer Part Number:

  PIC16LF1903T-I/SO

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  SOIC

• Package Description:

  7.50 MM, LEAD FREE, PLASTIC, SOIC-28

• Pin Count:

  28

• Country Of Origin:

  Thailand

• HTS Code:

  8542.31.00.15

• Manufacturer:

  Microchip Technology Inc

• YTEOL:

  4.5

• Has ADC:

  YES

• Additional Feature:

  ALSO OPERATES AT 16MHZ WITH SUPPLY OF 1.8 V

• Bit Size:

  8

• Boundary Scan:

  YES

• CPU Family:

  PIC

• Clock Frequency-Max:

  20 MHz

• DAC Channels:

  NO

• DMA Channels:

  NO

• JESD-30 Code:

  R-PDSO-G28

• JESD-609 Code:

  e3

• Length:

  17.9 mm

• Moisture Sensitivity Level:

  1

• Number of I/O Lines:

  25

• Number of Terminals:

  28

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  NO

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP28,.4

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• RAM (bytes):

  256

• ROM (words):

  7168

• ROM Programmability:

  FLASH

• Seated Height-Max:

  2.65 mm

• Speed:

  20 MHz

• Supply Current-Max:

  3 mA

• Supply Voltage-Max:

  3.6 V

• Supply Voltage-Min:

  3.3 V

• Supply Voltage-Nom:

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  40

• Width:

  7.5 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER, RISC
