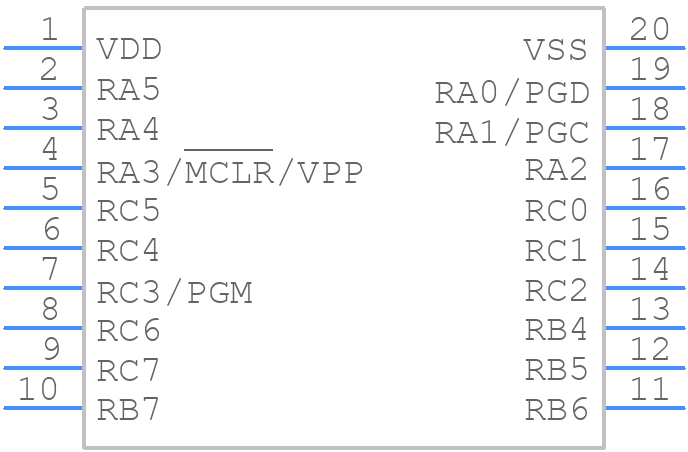

PIC18F14K22-I/SS - Microchip

PIC18F14K22-I/SS Details

• Manufacturer Part Number:

  PIC18F14K22-I/SS

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  SSOP

• Package Description:

  5.30 MM, LEAD FREE, PLASTIC, SSOP-20

• Pin Count:

  20

• Manufacturer Package Code:

  SSOP-20

• Country Of Origin:

  Philippines, Thailand

• ECCN Code:

  3A991.A.2

• HTS Code:

  8542.31.00.01

• Factory Lead Time:

  6 Weeks

• Manufacturer:

  Microchip Technology Inc

• YTEOL:

  8

• Has ADC:

  YES

• Additional Feature:

  ALSO OPERATES AT 2.3 V MINIMUM SUPPLY AT 20 MHZ

• Bit Size:

  16

• Boundary Scan:

  YES

• CPU Family:

  PIC18

• Clock Frequency-Max:

  64 MHz

• DAC Channels:

  YES

• DMA Channels:

  NO

• JESD-30 Code:

  R-PDSO-G20

• JESD-609 Code:

  e3

• Length:

  7.2 mm

• Moisture Sensitivity Level:

  2

• Number of I/O Lines:

  18

• Number of Terminals:

  20

• On Chip Program ROM Width:

  16

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SSOP

• Package Equivalence Code:

  SSOP20,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• RAM (bytes):

  512

• ROM (words):

  8192

• ROM Programmability:

  FLASH

• Seated Height-Max:

  2 mm

• Speed:

  64 MHz

• Supply Current-Max:

  15.6 mA

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  3.6 V

• Supply Voltage-Nom:

  3.6 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  40

• Width:

  5.3 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER, RISC
