PIC18LF26K83-I/SS - Microchip

Description: 8-bit Microcontrollers - MCU 64KB Flash 4KB RAM ADC2

Download PIC18LF26K83-I/SS Model

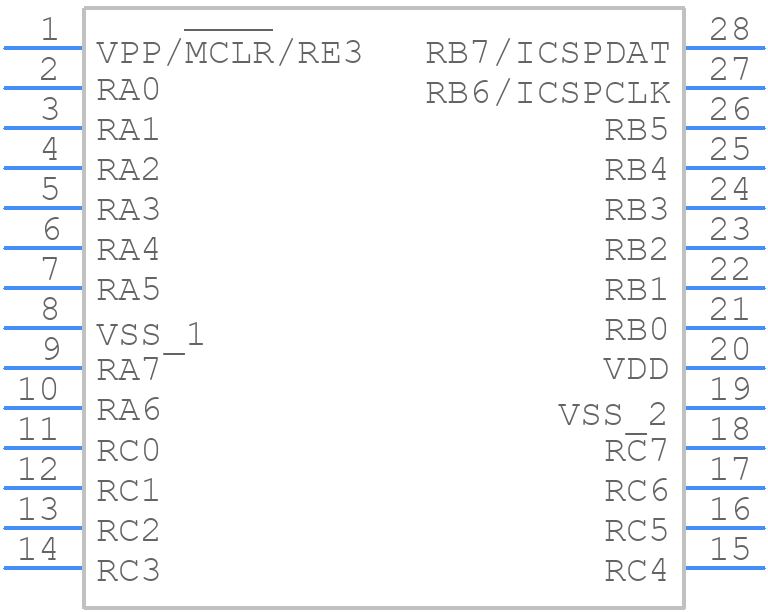

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
PIC18LF26K83-I/SS - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - (SS)28-Lead(SSOP)
click to zoom
3D Models
PIC18LF26K83-I/SS - Microchip  - 3D model - Small Outline Packages - (SS)28-Lead(SSOP)
click to zoom

PIC18LF26K83-I/SS Details

  • Manufacturer Part Number:

    PIC18LF26K83-I/SS

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SSOP-28

  • Reach Compliance Code:

    compliant

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    52 Weeks

  • Date Of Intro:

    2017-08-14

  • Manufacturer:

    Microchip Technology Inc

  • Risk Rank:

    0.72

  • YTEOL:

    4.5

  • Has ADC:

    YES

  • Additional Feature:

    OPERATES AT 1.8 V MINIMUM SUPPLY FOR 16 MHZ

  • Bit Size:

    8

  • Boundary Scan:

    NO

  • CPU Family:

    PIC18

  • Clock Frequency-Max:

    64 MHz

  • DAC Channels:

    YES

  • DMA Channels:

    YES

  • Format:

    FIXED POINT

  • Integrated Cache:

    NO

  • JESD-30 Code:

    R-PDSO-G28

  • Length:

    10.2 mm

  • Low Power Mode:

    YES

  • Number of DMA Channels:

    2

  • Number of External Interrupts:

    3

  • Number of I/O Lines:

    25

  • Number of Serial I/Os:

    2

  • Number of Terminals:

    28

  • Number of Timers:

    7

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • RAM (bytes):

    4096

  • ROM (words):

    65536

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    2 mm

  • Speed:

    64 MHz

  • Supply Current-Max:

    20 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    5.3 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PIC18LF26K83-I/SS Overview

Use the download button to access the PIC18LF26K83-I/SS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PIC18, or try a keyword search, such as Microcontrollers

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
