PIC24FJ256DA106-I/MR - Microchip

PIC24FJ256DA106-I/MR Details

• Manufacturer Part Number:

  PIC24FJ256DA106-I/MR

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  QFN

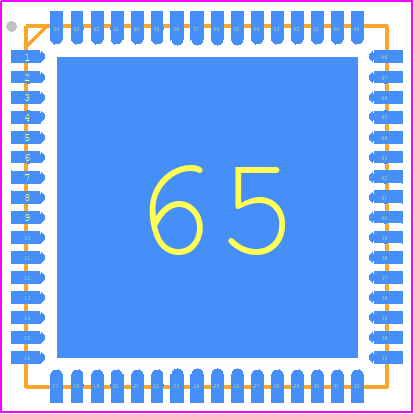

• Package Description:

  9 X 9 MM, 0.90 MM HEIGHT, LEAD FREE, PLASTIC, QFN-64

• Pin Count:

  64

• Country Of Origin:

  Thailand

• ECCN Code:

  3A991.A.2

• HTS Code:

  8542.31.00.01

• Manufacturer:

  Microchip Technology Inc

• YTEOL:

  7.7

• Has ADC:

  YES

• Bit Size:

  16

• Boundary Scan:

  YES

• CPU Family:

  PIC

• Clock Frequency-Max:

  32 MHz

• DAC Channels:

  NO

• DMA Channels:

  YES

• JESD-30 Code:

  S-PQCC-N64

• JESD-609 Code:

  e3

• Length:

  9 mm

• Moisture Sensitivity Level:

  1

• Number of I/O Lines:

  52

• Number of Terminals:

  64

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVQCCN

• Package Equivalence Code:

  LCC64,.35SQ,20

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• RAM (bytes):

  24576

• ROM (words):

  262144

• ROM Programmability:

  FLASH

• Seated Height-Max:

  1 mm

• Speed:

  32 MHz

• Supply Current-Max:

  18 mA

• Supply Voltage-Max:

  3.6 V

• Supply Voltage-Min:

  3.3 V

• Supply Voltage-Nom:

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  40

• Width:

  9 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER, RISC
