PIC24FJ32GA004-I/PT - Microchip

Description: Micro 16b, 32KB Fl, PIC24FJ32GA004-I/PT

Download PIC24FJ32GA004-I/PT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

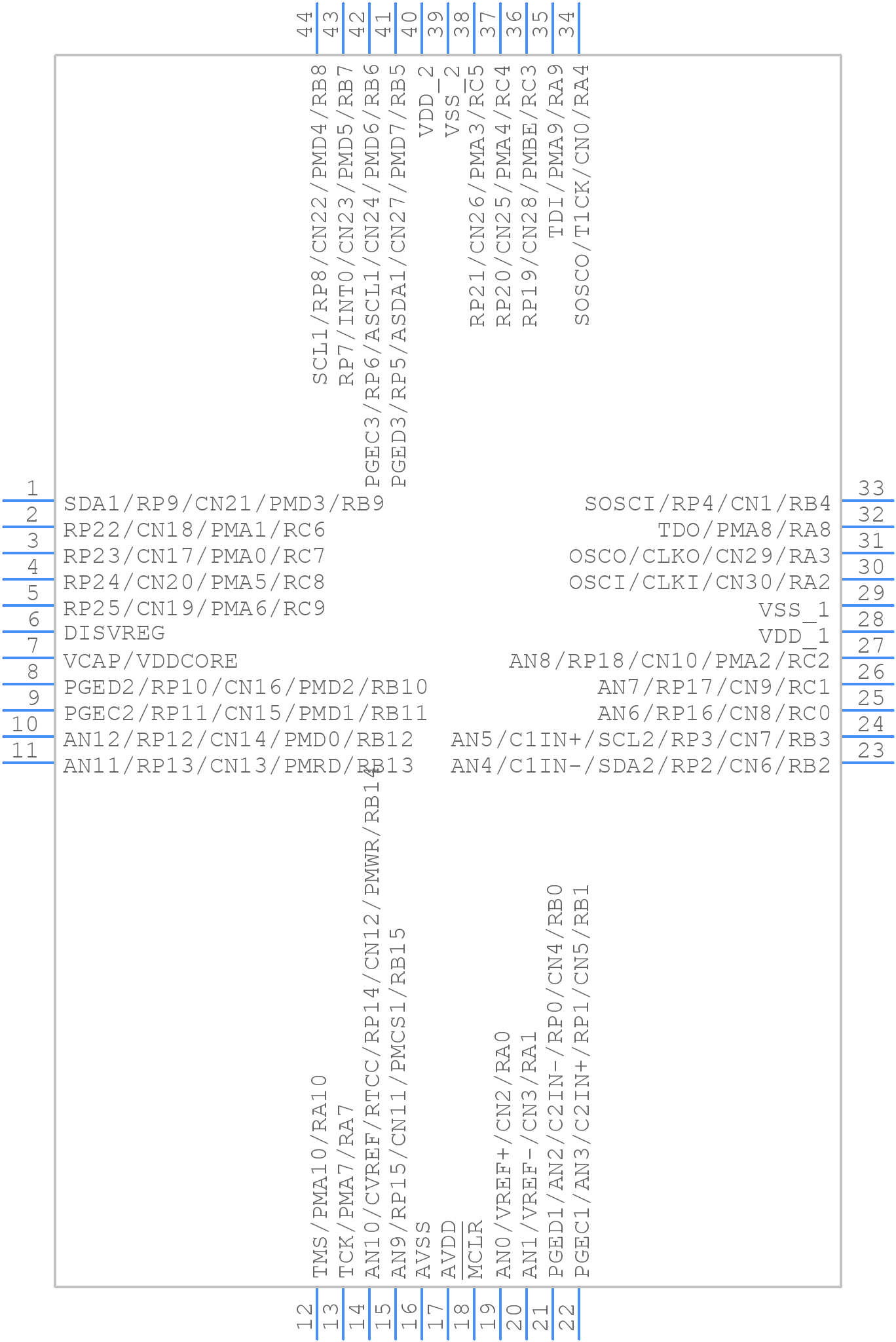

PIC24FJ32GA004-I/PT - Microchip - PCB symbol
click to zoom
PCB Footprints
PIC24FJ32GA004-I/PT - Microchip PCB footprint - Quad Flat Packages - Quad Flat Packages - (PT)44-Lead(TQFP)
click to zoom
3D Models
PIC24FJ32GA004-I/PT - Microchip - 3D model - Quad Flat Packages - (PT)44-Lead(TQFP)
click to zoom

PIC24FJ32GA004-I/PT Details

  • Manufacturer Part Number:

    PIC24FJ32GA004-I/PT

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Package Description:

    10 X 10 MM, 2 MM HEIGHT, LEAD FREE, PLASTIC, TQFP-44

  • Pin Count:

    44

  • Manufacturer Package Code:

    TQFP-44

  • Country Of Origin:

    Philippines, Thailand

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    8

  • Has ADC:

    YES

  • Bit Size:

    16

  • Boundary Scan:

    YES

  • CPU Family:

    PIC24

  • Clock Frequency-Max:

    32 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    NO

  • Format:

    FIXED POINT

  • Integrated Cache:

    NO

  • JESD-30 Code:

    S-PQFP-G44

  • JESD-609 Code:

    e3

  • Length:

    10 mm

  • Low Power Mode:

    YES

  • Moisture Sensitivity Level:

    1

  • Number of External Interrupts:

    3

  • Number of I/O Lines:

    35

  • Number of Terminals:

    44

  • Number of Timers:

    7

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TQFP

  • Package Equivalence Code:

    TQFP44,.39SQ,31

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • RAM (bytes):

    8192

  • ROM (words):

    32768

  • ROM Programmability:

    FLASH

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1.2 mm

  • Speed:

    32 MHz

  • Supply Current-Max:

    20 mA

  • Supply Voltage-Max:

    2.75 V

  • Supply Voltage-Min:

    2 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Width:

    10 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

PIC24FJ32GA004-I/PT Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the PIC24FJ32GA004-I/PT is to keep the digital and analog signals separate, using a ground plane and a power plane. The microcontroller should be placed in the center of the board, with the decoupling capacitors close to the VCC and GND pins. The PCB should also have a clear path for the clock signal to reduce noise and EMI.
  • To reduce power consumption in sleep mode, you can use the Power-On-Reset (POR) circuit to reduce the current consumption. You can also disable the internal oscillator and use an external clock source. Additionally, you can reduce the voltage supply to the microcontroller to minimize power consumption.
  • The recommended settings for the PLL in the PIC24FJ32GA004-I/PT are to set the PLL multiplier to 2 or 4, and the PLL divisor to 1 or 2. This will provide a stable clock signal and minimize jitter. It's also recommended to use the PLL in conjunction with the internal oscillator to reduce power consumption.
  • To improve the noise immunity of the PIC24FJ32GA004-I/PT in noisy environments, you can use a noise filter on the power supply, use a shielded cable for the communication lines, and place the microcontroller in a shielded enclosure. Additionally, you can use a noise-reducing PCB material and a Faraday cage to further reduce electromagnetic interference.
  • The recommended settings for the watchdog timer in the PIC24FJ32GA004-I/PT are to set the watchdog timer period to 1-2 seconds, and the watchdog timer timeout to 1-2 seconds. This will provide a reasonable balance between system stability and responsiveness.
