PIC24FJ512GU405-I/PT - Microchip

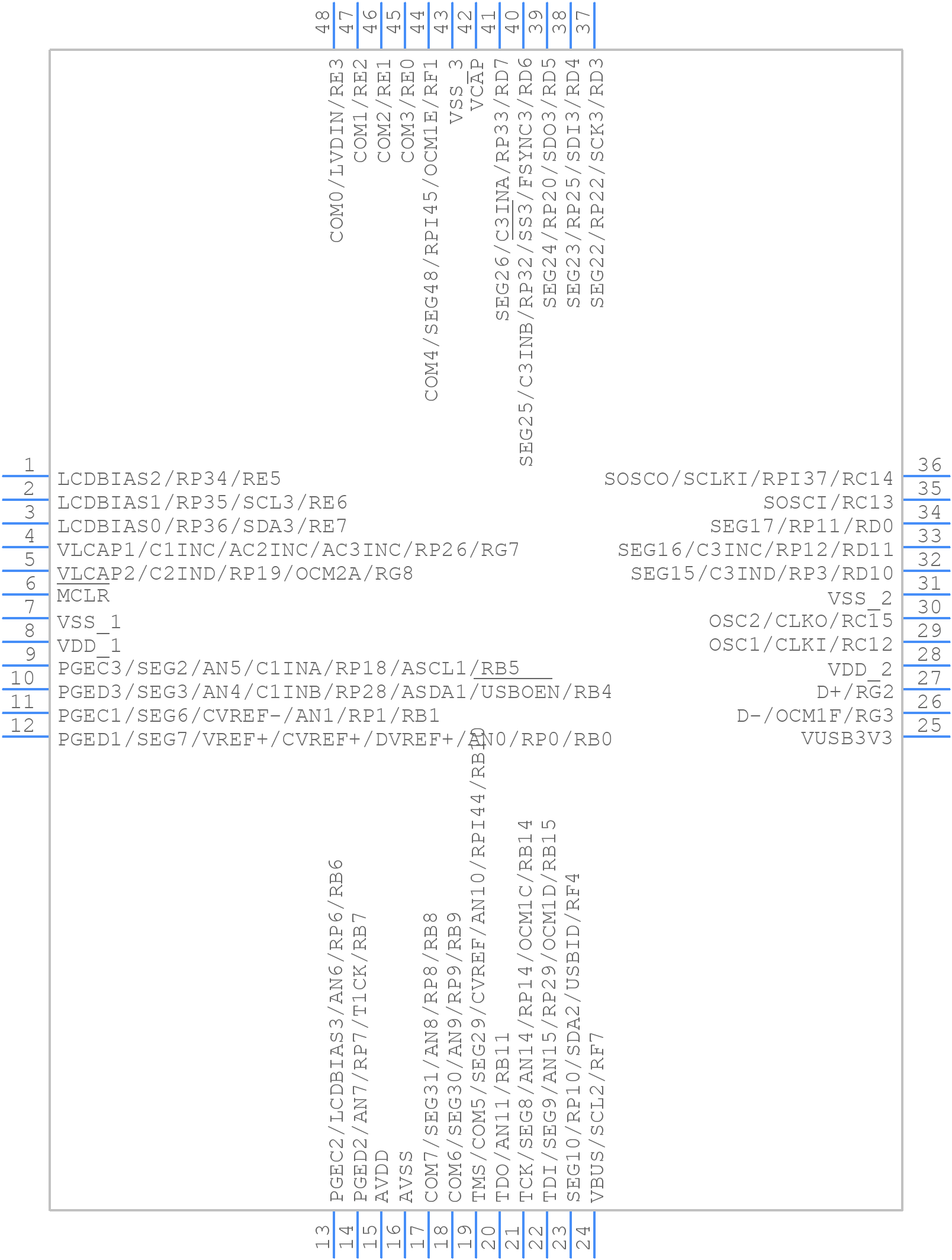

PIC24FJ512GU405-I/PT Details

• Manufacturer Part Number:

  PIC24FJ512GU405-I/PT

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  TQFP-48

• Pin Count:

  48

• Manufacturer Package Code:

  TQFP-48

• Country Of Origin:

  Philippines, Thailand

• ECCN Code:

  3A991.A.2

• HTS Code:

  8542.31.00.01

• Factory Lead Time:

  6 Weeks

• Date Of Intro:

  2020-06-02

• Manufacturer:

  Microchip Technology Inc

• YTEOL:

  18

• Has ADC:

  YES

• Additional Feature:

  ITS ALSO AVAILABLE WITH 12-CH 10-BIT ADC

• Bit Size:

  16

• Boundary Scan:

  NO

• CPU Family:

  PIC24

• Clock Frequency-Max:

  48 MHz

• DAC Channels:

  NO

• DMA Channels:

  YES

• Format:

  FIXED POINT

• Integrated Cache:

  NO

• JESD-30 Code:

  S-PQFP-G48

• JESD-609 Code:

  e3

• Length:

  7 mm

• Low Power Mode:

  YES

• Number of DMA Channels:

  6

• Number of External Interrupts:

  4

• Number of I/O Lines:

  38

• Number of Terminals:

  48

• Number of Timers:

  5

• On Chip Data RAM Width:

  8

• On Chip Program ROM Width:

  24

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TFQFP

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK, THIN PROFILE, FINE PITCH

• RAM (bytes):

  32768

• RAM (words):

  32768

• ROM (words):

  524288

• ROM Programmability:

  FLASH

• Seated Height-Max:

  1.2 mm

• Speed:

  32 MHz

• Supply Voltage-Max:

  3.6 V

• Supply Voltage-Min:

  3.3 V

• Supply Voltage-Nom:

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Width:

  7 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER, RISC
