PIC24HJ64GP202-I/SP - Microchip

Description: Operating Conditions • 3.0V to 3.6V, -40ºC to +150ºC, DC to 20 MIPS • 3.0V to 3.6V, -40ºC to +125ºC, DC to 40 MIPS Clock Management • 2% internal oscillator • Programmable PLL and oscillator clock sources • Fail-Safe Clock Monitor (FSCM) • Independent Watchdog Timer • Low-power management modes • Fast wake-up and start-up

Download PIC24HJ64GP202-I/SP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

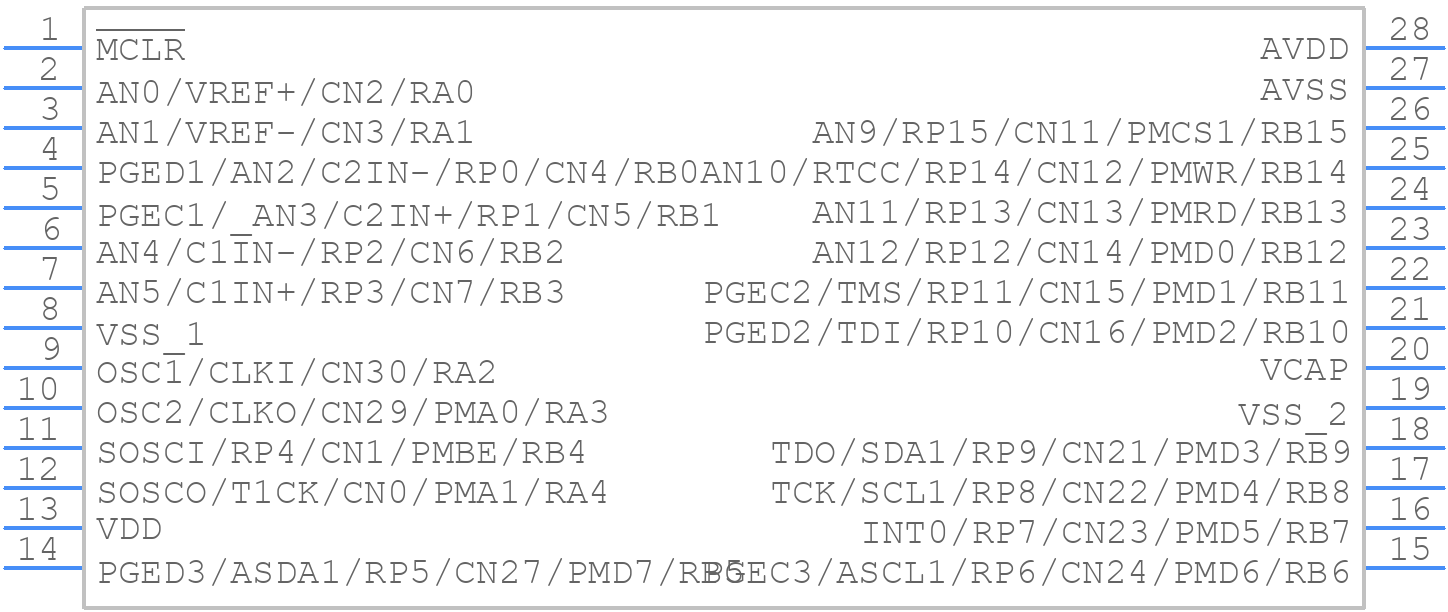

PIC24HJ64GP202-I/SP - Microchip - PCB symbol
click to zoom
PCB Footprints

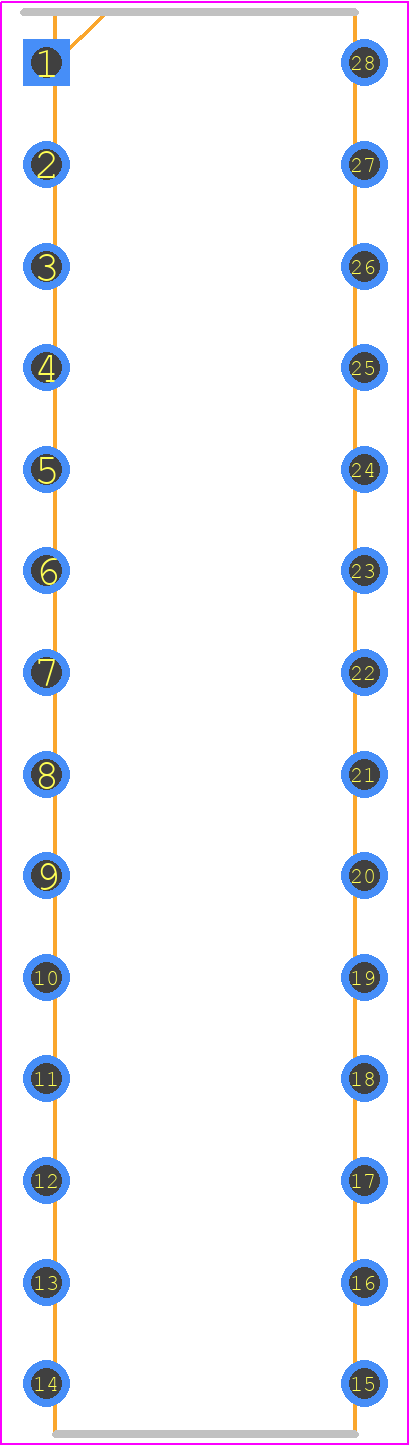

PIC24HJ64GP202-I/SP - Microchip PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 28-Lead Skinny Plastic Dual In -Line (SP)-300 mil Body [SPDIP]
click to zoom
3D Models
PIC24HJ64GP202-I/SP - Microchip - 3D model - Dual-In-Line Packages - 28-Lead Skinny Plastic Dual In -Line (SP)-300 mil Body [SPDIP]
click to zoom

PIC24HJ64GP202-I/SP Details

  • Manufacturer Part Number:

    PIC24HJ64GP202-I/SP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    0.300 INCH, LEAD FREE, PLASTIC, SDIP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    SPDIP-28

  • Country Of Origin:

    Thailand

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    8

  • Has ADC:

    YES

  • Bit Size:

    16

  • Boundary Scan:

    YES

  • CPU Family:

    PIC24

  • Clock Frequency-Max:

    40 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    YES

  • Format:

    FIXED POINT

  • Integrated Cache:

    NO

  • JESD-30 Code:

    R-PDIP-T28

  • JESD-609 Code:

    e3

  • Length:

    34.671 mm

  • Low Power Mode:

    YES

  • Number of DMA Channels:

    8

  • Number of External Interrupts:

    3

  • Number of I/O Lines:

    21

  • Number of Serial I/Os:

    2

  • Number of Terminals:

    28

  • Number of Timers:

    7

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • RAM (bytes):

    8192

  • ROM (words):

    65536

  • ROM Programmability:

    FLASH

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    5.08 mm

  • Speed:

    40 MHz

  • Supply Current-Max:

    76 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

PIC24HJ64GP202-I/SP Frequently Asked Questions (FAQs)

  • The maximum clock frequency for the PIC24HJ64GP202-I/SP is 40 MHz, but it can be overclocked to 50 MHz with some limitations.
  • The oscillator can be configured using the FOSCSEL and FNOSC bits in the FOSC register. The datasheet provides more information on the different oscillator modes and configuration options.
  • The maximum current that can be sourced by an I/O pin is 25 mA, and the maximum current that can be sunk is 50 mA. However, the total current sourced or sunk by all I/O pins should not exceed 200 mA.
  • The internal oscillator can be used as a clock source by setting the FOSCSEL bits to '11' and the FNOSC bits to '11' in the FOSC register. The internal oscillator frequency can be adjusted using the OSCTUN register.
  • The PLL is used to multiply the clock frequency of the internal oscillator or an external clock source to generate a higher frequency clock signal. This allows the microcontroller to operate at a higher frequency while still using a lower frequency clock source.
