PIC32MX130F256B-I/SS - Microchip

Description: Microchip PIC32MX130F256B-I/SS, 32bit PIC Microcontroller, 40MHz, 256 kB Flash, 28-Pin SSOP

Download PIC32MX130F256B-I/SS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

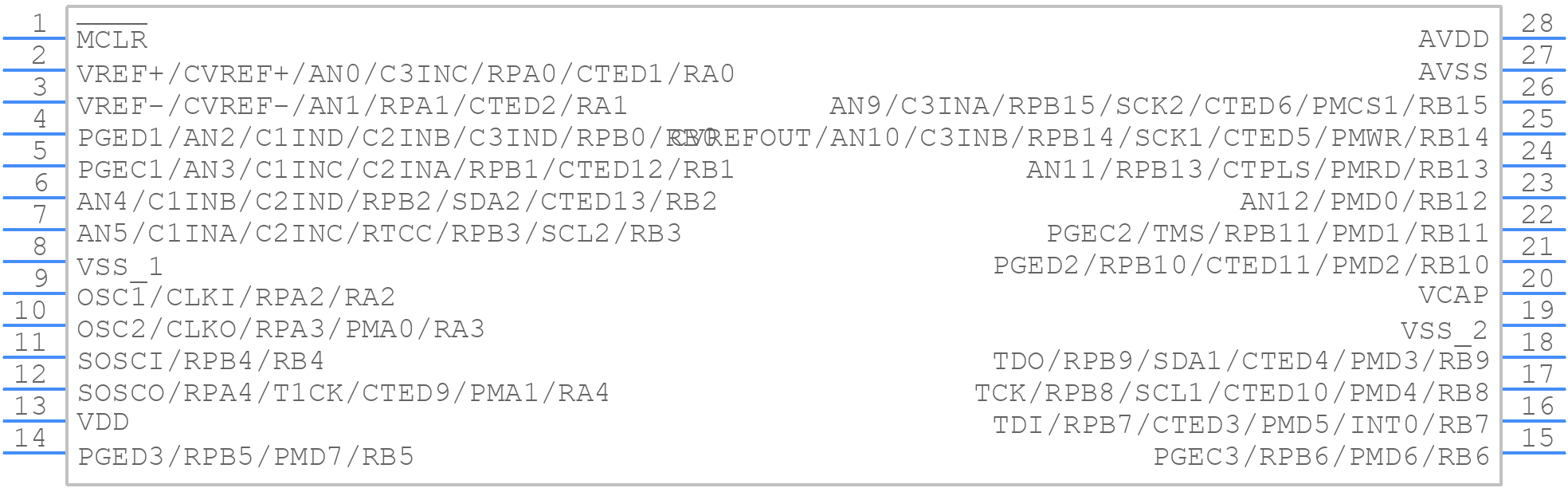

PIC32MX130F256B-I/SS - Microchip - PCB symbol
click to zoom
PCB Footprints
PIC32MX130F256B-I/SS - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 28-Lead Plastic Shrink Small Outline (SS)
click to zoom
3D Models
PIC32MX130F256B-I/SS - Microchip - 3D model - Small Outline Packages - 28-Lead Plastic Shrink Small Outline (SS)
click to zoom

PIC32MX130F256B-I/SS Details

  • Manufacturer Part Number:

    PIC32MX130F256B-I/SS

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    SSOP-28

  • Country Of Origin:

    Thailand

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    13

  • Has ADC:

    YES

  • Additional Feature:

    THIS DEVICE FEATURES 3KBYTE OF BOOT FLASH MEMORY

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • CPU Family:

    PIC32

  • Clock Frequency-Max:

    50 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    YES

  • Format:

    FIXED POINT

  • Integrated Cache:

    NO

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    10.2 mm

  • Low Power Mode:

    YES

  • Number of DMA Channels:

    4

  • Number of External Interrupts:

    5

  • Number of I/O Lines:

    21

  • Number of Terminals:

    28

  • Number of Timers:

    5

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Qualification Status:

    Not Qualified

  • RAM (bytes):

    16384

  • RAM (words):

    16384

  • ROM (words):

    262144

  • ROM Programmability:

    FLASH

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    2 mm

  • Speed:

    40 MHz

  • Supply Current-Max:

    37 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2.3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    5.3 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC
