PIC32MX170F256B-I/SO - Microchip

Description: 32-bit Microcontrollers - MCU 256KB Flash 64KB RAM 40MHz, 10-bit ADC

Download PIC32MX170F256B-I/SO Model
Schematic

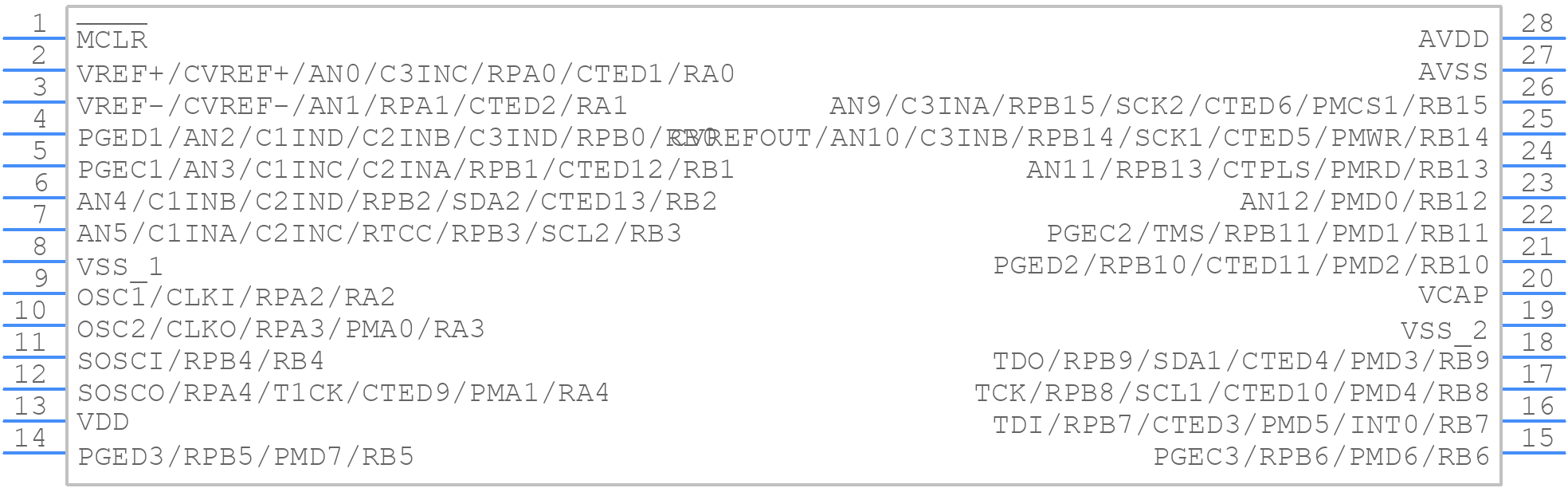

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

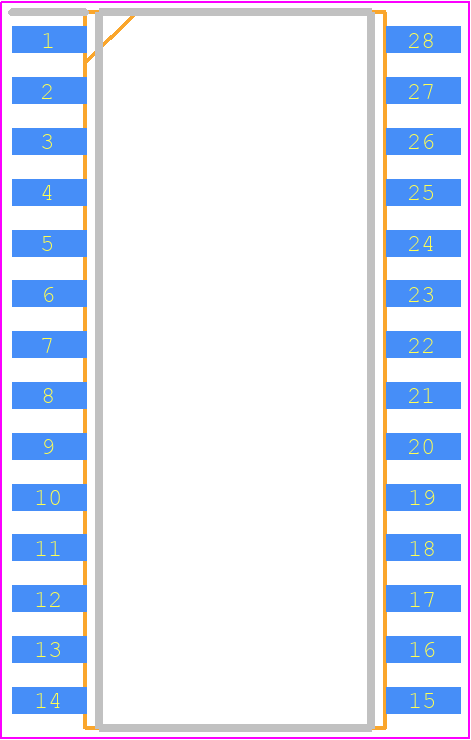

PIC32MX170F256B-I/SO - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 28 LEAD PLastic Small Outline (S))-Wide 7.50mm body [SOIC]
click to zoom
3D Models
PIC32MX170F256B-I/SO - Microchip  - 3D model - Small Outline Packages - 28 LEAD PLastic Small Outline (S))-Wide 7.50mm body [SOIC]
click to zoom

PIC32MX170F256B-I/SO Details

  • Manufacturer Part Number:

    PIC32MX170F256B-I/SO

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    SOIC-28

  • Country Of Origin:

    Thailand

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    1 Week

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    13

  • Has ADC:

    YES

  • Additional Feature:

    THIS DEVICE FEATURES 3KBYTE OF BOOT FLASH MEMORY

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • CPU Family:

    PIC32

  • Clock Frequency-Max:

    50 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    YES

  • Format:

    FIXED POINT

  • Integrated Cache:

    NO

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    17.9 mm

  • Low Power Mode:

    YES

  • Moisture Sensitivity Level:

    1

  • Number of DMA Channels:

    4

  • Number of External Interrupts:

    5

  • Number of I/O Lines:

    21

  • Number of Terminals:

    28

  • Number of Timers:

    5

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • RAM (bytes):

    65536

  • RAM (words):

    65536

  • ROM (words):

    262144

  • ROM Programmability:

    FLASH

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    2.65 mm

  • Speed:

    40 MHz

  • Supply Current-Max:

    37 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2.3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    7.5 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

PIC32MX170F256B-I/SO Frequently Asked Questions (FAQs)

  • The maximum clock frequency that can be achieved with an external crystal oscillator is 50 MHz. However, the device can also be overclocked up to 80 MHz with a high-speed crystal oscillator, but this is not recommended for production designs.
  • To configure the oscillator for optimal performance, you should use a high-quality crystal oscillator with a load capacitance of 15-20 pF, and ensure that the oscillator pins (OSCI and OSCO) are properly decoupled with 10-22 nF capacitors. Additionally, you should also configure the oscillator settings in the device's configuration bits to match the crystal frequency.
  • The maximum amount of current that can be sourced or sunk by the GPIO pins is 25 mA per pin. However, the total current sourced or sunk by all GPIO pins should not exceed 200 mA to prevent overheating and damage to the device.
  • To implement a reliable brown-out reset (BOR) function, you should use an external voltage supervisor IC, such as the MCP809, which can detect voltage drops and reset the device. You should also configure the BOR settings in the device's configuration bits to match the voltage supervisor's trip point.
  • The recommended power-on reset (POR) circuit for this device is a simple RC circuit with a 10 kΩ resistor and a 10 μF capacitor. This circuit provides a reliable reset signal to the device during power-up and ensures that the device starts up correctly.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PIC32MX170F256B-I/SO Overview

Use the download button to access the PIC32MX170F256B-I/SO schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PIC32, or try a keyword search, such as Microcontrollers
