PIC32MZ1064DAL169-V/HF - Microchip

PIC32MZ1064DAL169-V/HF Details

• Manufacturer Part Number:

  PIC32MZ1064DAL169-V/HF

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Pin Count:

  169

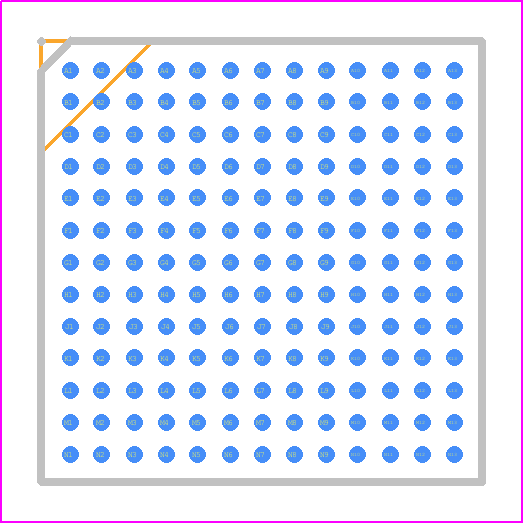

• Manufacturer Package Code:

  LFBGA-169

• Country Of Origin:

  Taiwan

• ECCN Code:

  5A992.C

• HTS Code:

  8542.31.00.01

• Factory Lead Time:

  33 Weeks

• Manufacturer:

  Microchip Technology Inc

• YTEOL:

  18

• Has ADC:

  YES

• Address Bus Width:

  24

• Bit Size:

  32

• Boundary Scan:

  YES

• CPU Family:

  PIC32

• Clock Frequency-Max:

  64 MHz

• DAC Channels:

  NO

• DMA Channels:

  YES

• External Data Bus Width:

  16

• Format:

  FIXED POINT

• Integrated Cache:

  YES

• JESD-30 Code:

  S-PBGA-B169

• JESD-609 Code:

  e1

• Length:

  11 mm

• Low Power Mode:

  YES

• Number of DMA Channels:

  8

• Number of External Interrupts:

  5

• Number of I/O Lines:

  120

• Number of Serial I/Os:

  5

• Number of Terminals:

  169

• Number of Timers:

  12

• On Chip Data RAM Width:

  8

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  LFBGA

• Package Equivalence Code:

  BGA169,13X13,32

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY, LOW PROFILE, FINE PITCH

• RAM (bytes):

  655360

• RAM (words):

  655360

• ROM (words):

  1048576

• ROM Programmability:

  FLASH

• Screening Level:

  AEC-Q100; TS 16949

• Seated Height-Max:

  1.4 mm

• Speed:

  200 MHz

• Supply Current-Max:

  172 mA

• Supply Voltage-Max:

  1.9 V

• Supply Voltage-Min:

  1.7 V

• Supply Voltage-Nom:

  1.8 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  Tin/Silver/Copper (Sn/Ag/Cu)

• Terminal Form:

  BALL

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  BOTTOM

• Width:

  11 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER, RISC
