Part Image

PIDX-A-040 - Alphasense

Description: Target gases Minimum Detection Level (ppb) Linear Range (ppm) Operating Range (ppm) Typical Sensitivity Full Stabilisation Time Warm Up Time Offset Voltage (mV) Response Time (t90 sec) VOCs with ionisation potentials < 10.6 eV 1 0-40 0-40 55 mv/ppm ±10% (tested at 10 ppm) 5 minutes 5 seconds 40-100 6.5

Download PIDX-A-040 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this PIDX-A-040 model

Email notifications will be applied after download.

Send part feedback

Symbol

PIDX-A-040 - Alphasense - PCB symbol

PCB Footprints

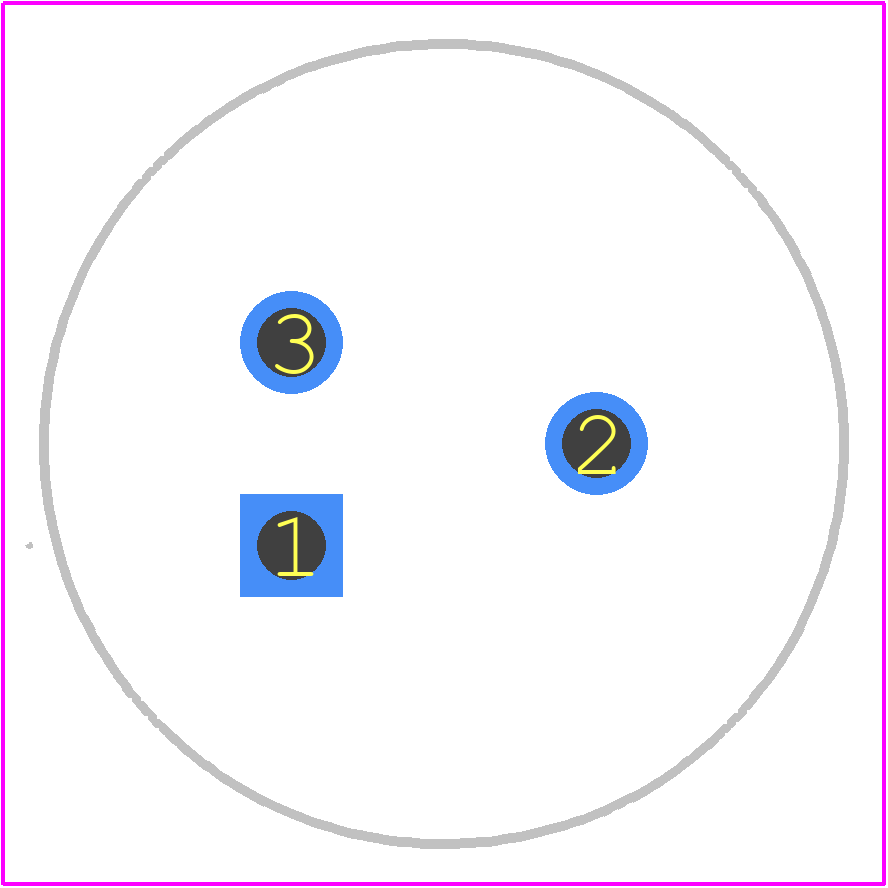

PIDX-A-040 - Alphasense PCB footprint - Other - Other - 20mm x 16.5mm

3D Models

PIDX-A-040 - Alphasense - 3D model - Other - 20mm x 16.5mm

Datasheet Download Datasheet
Stock & Prices Price & Stock for PIDX-A-040
Part Number PIDX-A-040
Manufacturer Alphasense
Pin Count 3
Part Category Undefined or Miscellaneous
Package Category Other
Footprint Name Other - 20mm x 16.5mm
Released Date Apr 25, 2025
Last Modified Date Apr 25, 2025 7:28 AM UTC
Pinout / Pin List Click Here (Member Only)

PIDX-A-040 Details

Manufacturer Part Number:
PIDX-A-040
Manufacturer:
Alphasens

Trust Checks

Community Provided

System Verified

Community Approved

PIDX-A-040 Overview

Use the download button to access the PIDX-A-040 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like PIDX-, or try a keyword search, such as Fixed Inductors
