Part Image

PJ-002AH - Same Sky

Description: 2.0 x 6.5 mm, 5.0 A, Horizontal, Through Hole, Dc Power Jack Connector

Download PJ-002AH Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PJ-002AH - Same Sky - PCB symbol
click to zoom
PCB Footprints

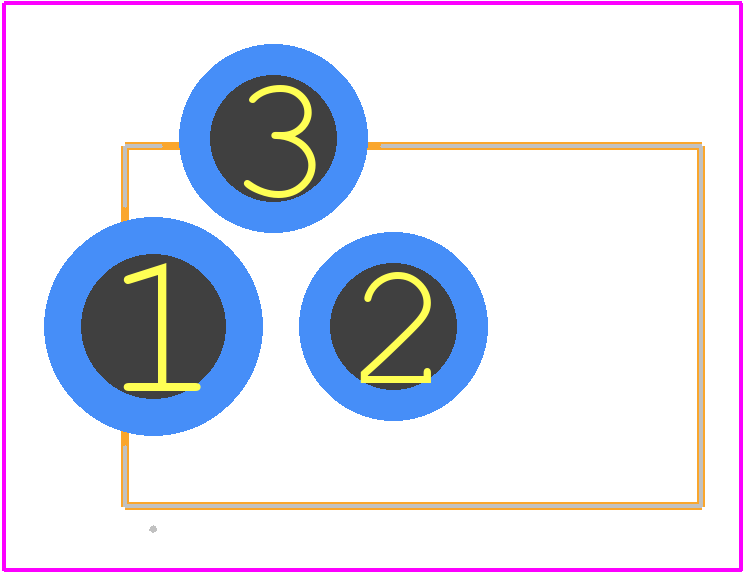

PJ-002AH - Same Sky PCB footprint - Other - Other - PJ-002AH-3
click to zoom
3D Models
PJ-002AH - Same Sky - 3D model - Other - PJ-002AH-3
click to zoom

PJ-002AH Details

  • Manufacturer Part Number:

    PJ-002AH

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Same Sky

  • YTEOL:

    6.25

  • Body Breadth:

    0.354 inch

  • Body Depth:

    0.567 inch

  • Body Length:

    0.433 inch

  • Body/Shell Style:

    JACK

  • Connector Type:

    DC POWER JACK

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Silver (Ag) - with Nickel (Ni) barrier

  • Contact Material:

    COPPER ALLOY

  • JESD-609 Code:

    e4

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Option:

    GENERAL PURPOSE

  • Pin Diameter:

    2 mm

  • Rated Current (Power):

    5 A

  • Rated Voltage:

    24 V

  • Reference Standard:

    UL

  • Termination Type:

    SOLDER

PJ-002AH Frequently Asked Questions (FAQs)

  • A good PCB layout for PJ-002AH involves keeping the input and output traces separate, using a solid ground plane, and minimizing the length of the input and output traces to reduce EMI and noise.
  • To ensure reliability in high-temperature applications, ensure proper heat sinking, keep the device away from heat sources, and follow the recommended derating guidelines for temperature and power dissipation.
  • The maximum cable length recommended for PJ-002AH is 3 meters (10 feet) to minimize signal attenuation and ensure reliable data transmission.
  • Yes, PJ-002AH is designed for high-speed data transmission up to 1 Gbps, making it suitable for applications such as high-definition video transmission and high-speed data acquisition.
  • To troubleshoot common issues with PJ-002AH, check the power supply, signal integrity, and cable quality. Use oscilloscopes or logic analyzers to debug the signal and identify the root cause of the issue.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PJ-002AH Overview

Use the download button to access the PJ-002AH schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PJ-00, or try a keyword search, such as DC Power Plugs or Jacks

About Same Sky

Tracing our roots back to 1989 just outside of Portland, Oregon, Same Sky® (formerly CUI Devices) is an electronic components manufacturer dedicated to nurturing the spirit of innovation by caring more than is expected, embracing evolution, taking a holistic approach, and having fun along the away. We specialize in an ever-expanding range of product technologies, including audio, interconnect, motion, relay, sensor, switch and thermal management solutions.
