PJ-002B - Same Sky

Description: 2.5 x 6.5 mm, 2.5 A, Horizontal, Through Hole, Dc Power Jack Connector

Download PJ-002B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PJ-002B - Same Sky - PCB symbol
click to zoom
PCB Footprints

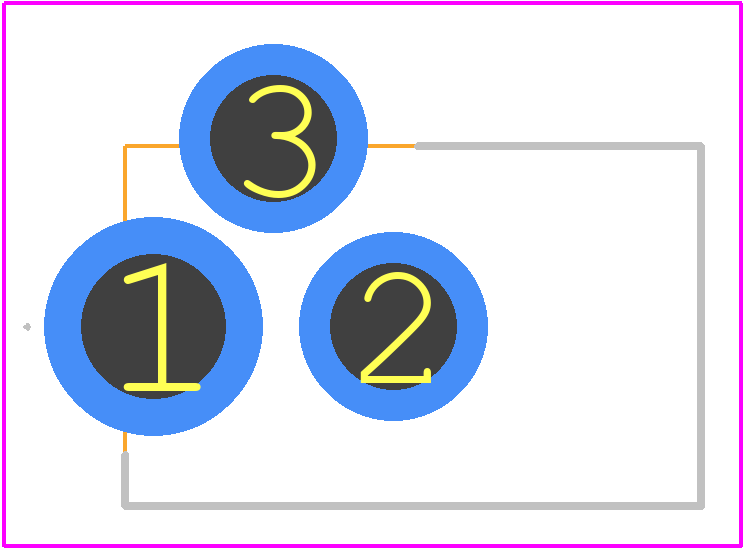

PJ-002B - Same Sky PCB footprint - Other - Other - PJ-002B-2
click to zoom
3D Models
PJ-002B - Same Sky - 3D model - Other - PJ-002B-2
click to zoom

PJ-002B Details

  • Manufacturer Part Number:

    PJ-002B

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Same Sky

  • YTEOL:

    6.25

  • Body Breadth:

    0.43 inch

  • Body Depth:

    0.57 inch

  • Body Length:

    0.35 inch

  • Body/Shell Style:

    JACK

  • Connector Type:

    DC POWER JACK

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Material:

    NOT APPLICABLE

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Option:

    GENERAL PURPOSE

  • Pin Diameter:

    2.5 mm

  • Rated Current (Power):

    2.5 A

  • Rated Voltage:

    24 V

  • Reference Standard:

    UL

  • Termination Type:

    SOLDER

PJ-002B Frequently Asked Questions (FAQs)

  • A symmetrical layout with a solid ground plane and minimal signal trace length is recommended. Keep the input and output traces separate and avoid crossing them to minimize noise and EMI.
  • Ensure good airflow around the device, use a heat sink if necessary, and follow the recommended derating curves for temperature. Also, consider using a thermal interface material to improve heat transfer.
  • The maximum cable length depends on the specific application and signal frequency. As a general guideline, keep the cable length below 3 meters (10 feet) to minimize signal attenuation and reflections.
  • Yes, PJ-002B can be used in redundant or backup power systems. However, ensure that the device is properly synchronized with the primary power source to avoid any potential issues during switchover.
  • Check the input voltage, output load, and ambient temperature. Verify that the device is properly mounted and cooled. Use an oscilloscope to monitor the output voltage and current. Consult the datasheet and application notes for specific troubleshooting guidelines.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PJ-002B Overview

Use the download button to access the PJ-002B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PJ-00, or try a keyword search, such as DC Power Plugs or Jacks

About Same Sky

Tracing our roots back to 1989 just outside of Portland, Oregon, Same Sky® (formerly CUI Devices) is an electronic components manufacturer dedicated to nurturing the spirit of innovation by caring more than is expected, embracing evolution, taking a holistic approach, and having fun along the away. We specialize in an ever-expanding range of product technologies, including audio, interconnect, motion, relay, sensor, switch and thermal management solutions.
