PJ-002BH Frequently Asked Questions (FAQs)

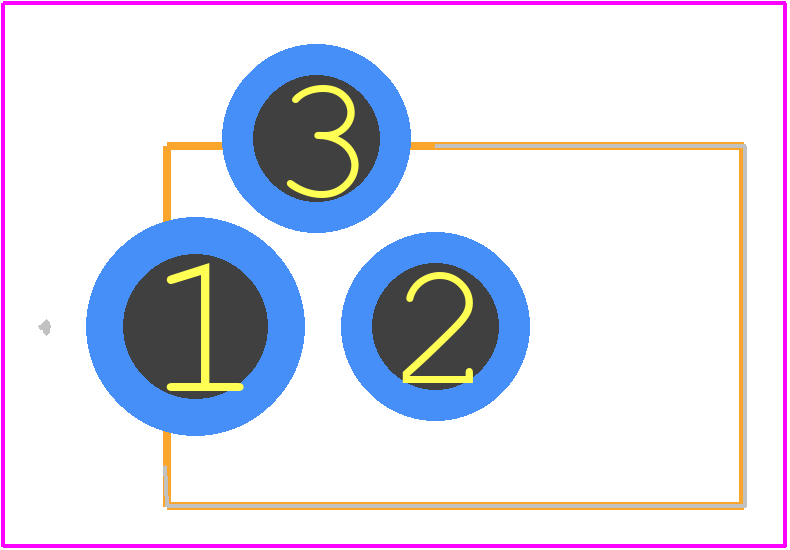

• What is the recommended PCB layout and land pattern for optimal performance?
  CUI Devices recommends following the recommended PCB layout and land pattern provided in the datasheet or application notes to ensure optimal performance and minimize signal degradation.
• How do I ensure reliable connections and minimize the risk of solder joint failure?
  To ensure reliable connections, use a solder with a melting point above 217°C, and follow the recommended soldering profile. Additionally, ensure the PCB is clean and free of contaminants, and use a soldering iron with a temperature control.
• What is the maximum operating temperature range for the PJ-002BH?
  The PJ-002BH is rated for operation from -40°C to 85°C. However, it's essential to note that the device's performance may degrade at extreme temperatures, and it's recommended to operate within the specified temperature range for optimal performance.
• Can I use the PJ-002BH in a high-vibration or high-shock environment?
  While the PJ-002BH is designed to be robust, it's essential to ensure the device is properly secured to the PCB and the PCB is securely fastened to the system to minimize the risk of damage or disconnection due to vibration or shock.
• How do I troubleshoot issues with the PJ-002BH, such as signal degradation or intermittent connectivity?
  To troubleshoot issues with the PJ-002BH, start by verifying the PCB layout and solder connections, then check the signal integrity and power supply quality. If issues persist, consult the datasheet and application notes or contact CUI Devices' technical support for further assistance.
