PJ-006B-SMT-TR - Same Sky

PJ-006B-SMT-TR Frequently Asked Questions (FAQs)

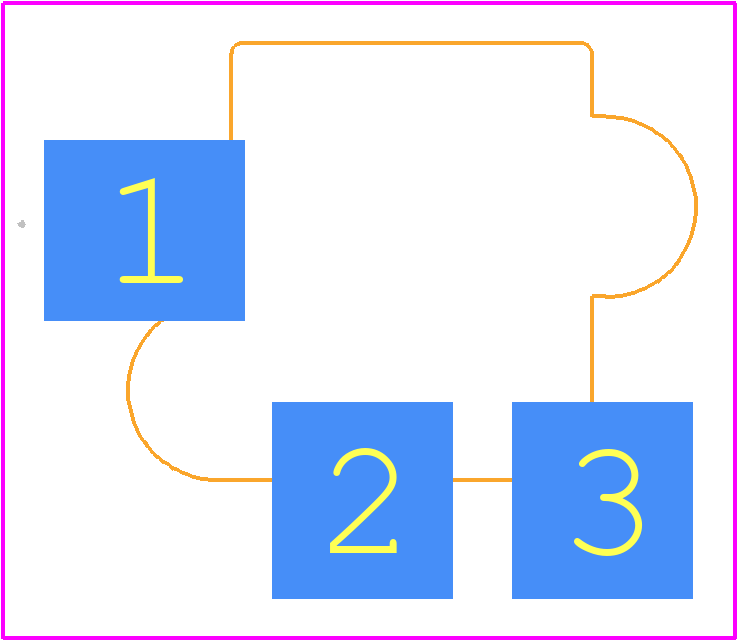

• What is the recommended land pattern for PJ-006B-SMT-TR?
  The recommended land pattern for PJ-006B-SMT-TR can be found in the CUI Devices' application note or by contacting their technical support team. A general guideline is to follow the IPC-7351 standard for surface mount components.
• How do I handle the PJ-006B-SMT-TR during reflow soldering?
  During reflow soldering, ensure the PJ-006B-SMT-TR is exposed to a maximum temperature of 260°C for 10-15 seconds. It's also recommended to follow the JEDEC J-STD-020 standard for reflow soldering profiles.
• What is the moisture sensitivity level (MSL) of PJ-006B-SMT-TR?
  The PJ-006B-SMT-TR has an MSL rating of 3, which means it can be exposed to a maximum of 168 hours at 30°C and 60% relative humidity before reflow soldering.
• Can I use PJ-006B-SMT-TR in high-vibration or high-shock applications?
  While the PJ-006B-SMT-TR is designed to be reliable, it's essential to evaluate its performance in high-vibration or high-shock applications. CUI Devices recommends consulting their technical support team or performing environmental testing to ensure the component meets the specific application requirements.
• What is the recommended storage condition for PJ-006B-SMT-TR?
  Store the PJ-006B-SMT-TR in a dry, cool place with a temperature range of 10°C to 30°C and relative humidity below 60%. Avoid exposing the components to direct sunlight, moisture, or extreme temperatures.
