PJ-009B - Same Sky

Description: 2.5 x 6.6 mm, 2.5 A, Vertical, Through Hole, Dc Power Jack Connector

Download PJ-009B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PJ-009B - Same Sky - PCB symbol
click to zoom
PCB Footprints

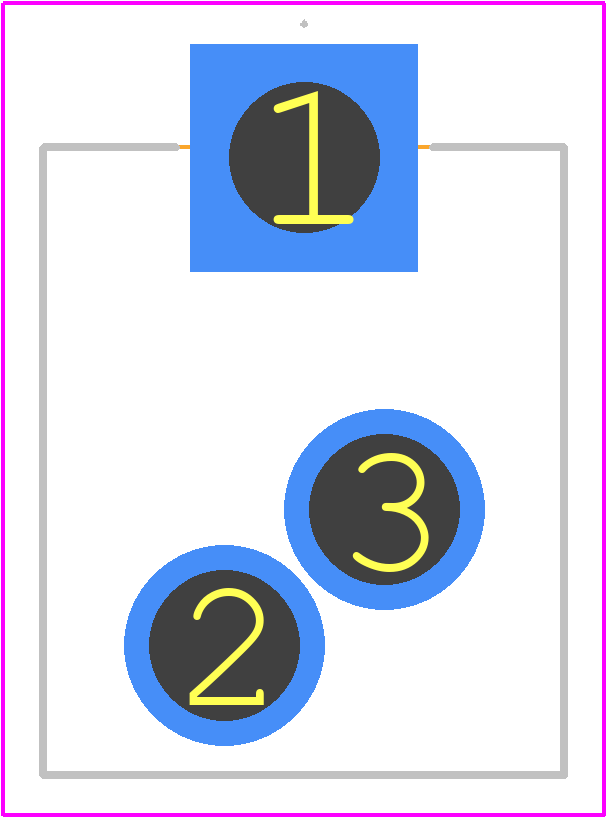

PJ-009B - Same Sky PCB footprint - Other - Other - PJ-009B-2
click to zoom
3D Models
PJ-009B - Same Sky - 3D model - Other - PJ-009B-2
click to zoom

PJ-009B Details

  • Manufacturer Part Number:

    PJ-009B

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Same Sky

  • YTEOL:

    6.25

  • Body Breadth:

    0.5 inch

  • Body Depth:

    0.524 inch

  • Body Length:

    0.598 inch

  • Body/Shell Style:

    JACK

  • Connector Type:

    DC POWER JACK

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Material:

    NOT APPLICABLE

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • JESD-609 Code:

    e3

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Option:

    GENERAL PURPOSE

  • Pin Diameter:

    2.5 mm

  • Rated Current (Power):

    2.5 A

  • Rated Voltage:

    24 V

  • Reference Standard:

    UL

  • Termination Type:

    SOLDER
