PJ-009BH - Same Sky

Description: 2.5 x 6.6 mm, 5.0 A, Vertical, Through Hole, Dc Power Jack Connector

Download PJ-009BH Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PJ-009BH - Same Sky - PCB symbol
click to zoom
PCB Footprints

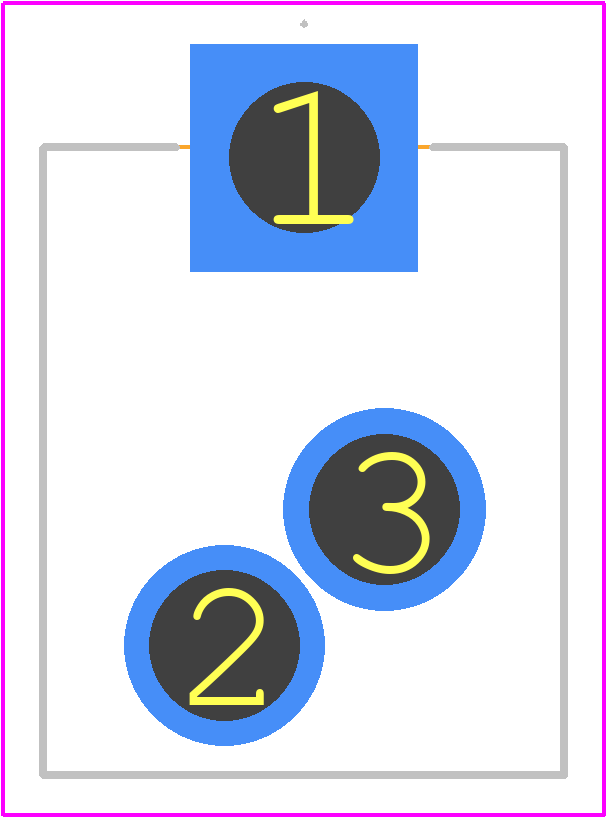

PJ-009BH - Same Sky PCB footprint - Other - Other - PJ-009BH-3
click to zoom
3D Models
PJ-009BH - Same Sky - 3D model - Other - PJ-009BH-3
click to zoom

PJ-009BH Details

  • Manufacturer Part Number:

    PJ-009BH

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Same Sky

  • YTEOL:

    6.25

  • Body Breadth:

    0.5 inch

  • Body Depth:

    0.524 inch

  • Body Length:

    0.598 inch

  • Body/Shell Style:

    JACK

  • Connector Type:

    DC POWER JACK

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Material:

    NOT APPLICABLE

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • Mounting Type:

    BOARD AND PANEL

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Option:

    GENERAL PURPOSE

  • Pin Diameter:

    2.5 mm

  • Rated Current (Power):

    5 A

  • Rated Voltage:

    24 V

  • Reference Standard:

    UL

  • Termination Type:

    SOLDER

PJ-009BH Frequently Asked Questions (FAQs)

  • CUI Devices recommends following the recommended PCB layout and land pattern provided in the datasheet or application notes to ensure optimal performance and minimize signal degradation.
  • To ensure reliable connections, use a gentle touch and avoid applying excessive force or pressure during handling and assembly. Use a soft, dry brush to remove any debris or contaminants from the connector contacts.
  • The PJ-009BH is rated for operating temperatures ranging from -40°C to 85°C and is designed to withstand environmental conditions such as humidity, vibration, and shock according to the IEC 60529 standard.
  • Yes, the PJ-009BH is designed for use in high-reliability and safety-critical applications, such as industrial control systems, medical devices, and aerospace systems, where failure is not an option.
  • The PJ-009BH is rated for a minimum of 500 mating cycles, and its lifespan can be extended with proper handling, cleaning, and maintenance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PJ-009BH Overview

Use the download button to access the PJ-009BH schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PJ-00, or try a keyword search, such as DC Power Plugs or Jacks

About Same Sky

CUI Devices is an electronic components manufacturer that specializes in audio components, interconnects, motion, relay, switch and thermal management solutions. The company designs and manufacturers components for use in a wide range of industries that include aerospace, industrial, medical, and telecommunications. CUI Devices is headquartered in Lake Oswego, Oregon.
