PJ-017D - Same Sky

PJ-017D Frequently Asked Questions (FAQs)

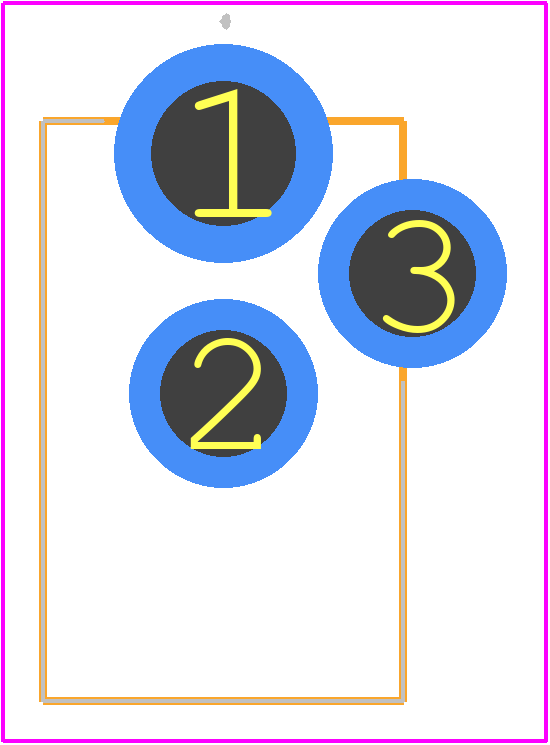

• What is the recommended PCB layout and land pattern for optimal performance?
  CUI Devices provides a recommended PCB layout and land pattern in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance, signal integrity, and thermal management.
• How do I handle ESD protection for the PJ-017D?
  The PJ-017D has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap, mat, or workstation, and ensure that all equipment is properly grounded.
• What is the maximum operating temperature range for the PJ-017D?
  While the datasheet specifies an operating temperature range of -40°C to 85°C, it's essential to note that the device's performance may degrade at extreme temperatures. For optimal performance, it's recommended to operate the PJ-017D within a temperature range of 0°C to 70°C.
• Can I use the PJ-017D in a high-vibration environment?
  The PJ-017D is designed to withstand moderate vibration levels, but it's not suitable for extreme vibration environments. If your application requires high vibration resistance, consider using a more ruggedized connector or taking additional measures to secure the device.
• How do I ensure reliable connections and prevent mating issues?
  To ensure reliable connections, make sure to follow proper mating and unmating procedures, and ensure that the connectors are clean and free of debris. Apply a moderate amount of force when mating the connectors, and avoid applying excessive force, which can damage the device.
