PJ-017DH - Same Sky

Description: 1.3 x 3.8 mm, 3.5 A, Horizontal, Through Hole, Kinked Pins, Dc Power Jack Connector

Download PJ-017DH Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PJ-017DH - Same Sky - PCB symbol
click to zoom
PCB Footprints

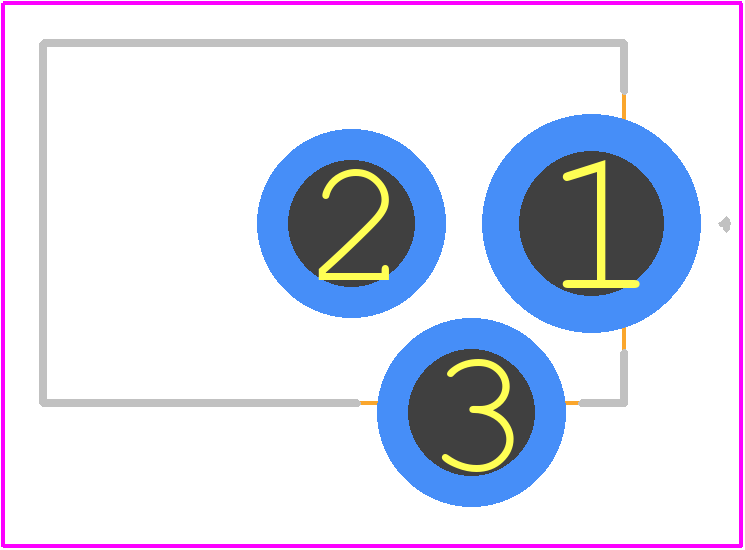

PJ-017DH - Same Sky PCB footprint - Other - Other - PJ-017DH-2
click to zoom
3D Models
PJ-017DH - Same Sky - 3D model - Other - PJ-017DH-2
click to zoom

PJ-017DH Details

  • Manufacturer Part Number:

    PJ-017DH

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Same Sky

  • YTEOL:

    6.25

  • Body Breadth:

    0.433 inch

  • Body Depth:

    0.551 inch

  • Body Length:

    0.378 inch

  • Body/Shell Style:

    JACK

  • Connector Type:

    DC POWER JACK

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Material:

    NOT APPLICABLE

  • Insulator Material:

    POLYAMIDE9T

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Option:

    GENERAL PURPOSE

  • Pin Diameter:

    1.3 mm

  • Rated Current (Power):

    3.5 A

  • Rated Voltage:

    24 V

  • Reference Standard:

    UL

  • Termination Type:

    SOLDER

PJ-017DH Frequently Asked Questions (FAQs)

  • A good PCB layout for the PJ-017DH should ensure that the input and output traces are separated, and the input capacitors are placed close to the device. A solid ground plane and a low-ESR output capacitor are also recommended.
  • To ensure reliability in high-temperature applications, it's essential to follow the recommended derating curves, ensure good airflow, and avoid exceeding the maximum junction temperature. Additionally, consider using a heat sink or thermal interface material to improve heat dissipation.
  • The recommended input capacitor value is 10uF to 22uF, with a voltage rating of 25V or higher. A low-ESR ceramic or electrolytic capacitor is recommended, such as the X5R or X7R dielectric type.
  • Yes, the PJ-017DH can be used in battery-powered devices. However, it's essential to consider the device's quiescent current and shutdown features to minimize power consumption. Additionally, ensure that the input voltage range is compatible with the battery voltage.
  • To troubleshoot issues with the PJ-017DH, start by verifying the input voltage, output load, and PCB layout. Check for signs of overheating, such as excessive temperature or thermal shutdown. Use an oscilloscope to monitor the output voltage and current, and consult the datasheet for troubleshooting guidelines.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PJ-017DH Overview

Use the download button to access the PJ-017DH schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PJ-01, or try a keyword search, such as DC Power Plugs or Jacks

About Same Sky

CUI Devices is an electronic components manufacturer that specializes in audio components, interconnects, motion, relay, switch and thermal management solutions. The company designs and manufacturers components for use in a wide range of industries that include aerospace, industrial, medical, and telecommunications. CUI Devices is headquartered in Lake Oswego, Oregon.
