PJ-019 - Same Sky

PJ-019 Frequently Asked Questions (FAQs)

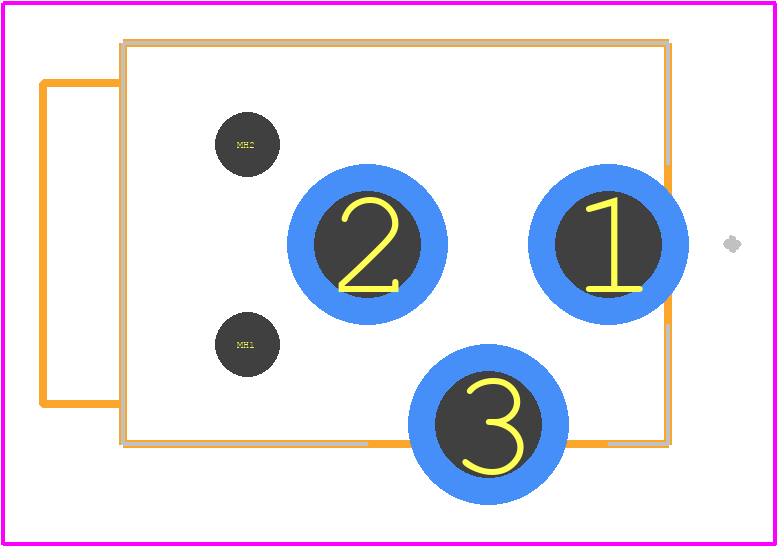

• What is the recommended PCB layout for optimal performance of PJ-019?
  A good PCB layout for PJ-019 involves keeping the input and output traces separate, using a solid ground plane, and placing the jack as close to the PCB edge as possible to minimize EMI.
• How do I ensure reliable mating and unmating of the PJ-019 connector?
  To ensure reliable mating and unmating, apply a gentle, consistent force, and avoid twisting or angling the connector during insertion or removal. Also, ensure the connector is properly seated and latched.
• What is the recommended torque for securing the PJ-019 connector to the PCB?
  The recommended torque for securing the PJ-019 connector to the PCB is 0.5-1.5 N·m (4-12 in-lbs). Over-torquing can damage the connector or PCB.
• Can I use the PJ-019 in high-vibration or high-shock applications?
  While the PJ-019 is designed to be rugged, it's essential to evaluate the specific vibration and shock requirements of your application. Consider adding additional mechanical support or using a more robust connector if necessary.
• How do I clean the PJ-019 connector and prevent corrosion?
  Use a soft, dry brush to remove debris. For more thorough cleaning, use a gentle solvent like isopropyl alcohol and a soft-bristled brush. Avoid using harsh chemicals or abrasive materials that can damage the connector.
