PJ-030DH-SMT-TR - Same Sky

Description: 1.3 x 4.2 mm, 3.5 A, Horizontal, Surface Mount (SMT), Shielded, Dc Power Jack Connector

Download PJ-030DH-SMT-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

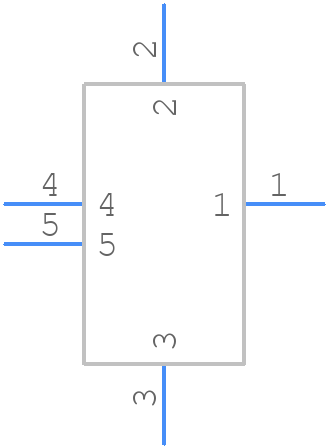

Symbol
PJ-030DH-SMT-TR - Same Sky - PCB symbol
click to zoom

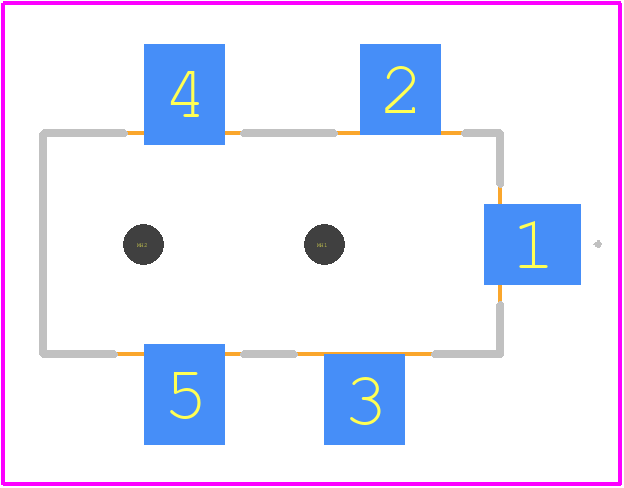

PCB Footprints
PJ-030DH-SMT-TR - Same Sky PCB footprint - Other - Other - PJ-030DH-SMT-TR-1
click to zoom
3D Models
PJ-030DH-SMT-TR - Same Sky - 3D model - Other - PJ-030DH-SMT-TR-1
click to zoom

PJ-030DH-SMT-TR Details

  • Manufacturer Part Number:

    PJ-030DH-SMT-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Same Sky

  • YTEOL:

    6.25

  • Additional Feature:

    SHIELDED

  • Body Breadth:

    0.295 inch

  • Body Depth:

    0.519 inch

  • Body Length:

    0.354 inch

  • Body/Shell Style:

    JACK

  • Connector Type:

    DC POWER JACK

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Silver (Ag)

  • Contact Material:

    NOT APPLICABLE

  • Insulator Material:

    POLYPHTALAMIDE

  • JESD-609 Code:

    e4

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Option:

    GENERAL PURPOSE

  • Packing Method:

    TR, 13 INCH

  • Pin Diameter:

    1.3 mm

  • Rated Current (Power):

    3.5 A

  • Rated Voltage:

    24 V

  • Reference Standard:

    UL

  • Termination Type:

    SURFACE MOUNT

PJ-030DH-SMT-TR Frequently Asked Questions (FAQs)

  • The recommended land pattern for the PJ-030DH-SMT-TR can be found in the CUI Devices' application note AN-103, which provides a detailed guide for PCB layout and assembly.
  • To ensure reliable soldering, follow the recommended soldering profile and temperature guidelines provided in the datasheet. Additionally, use a solder with a melting point below 220°C to prevent damage to the component.
  • The PJ-030DH-SMT-TR is rated for operation from -40°C to 85°C. However, it's recommended to derate the component's performance at temperatures above 70°C to ensure reliable operation.
  • Yes, the PJ-030DH-SMT-TR is designed to withstand vibrations up to 10G. However, it's recommended to follow proper mounting and soldering techniques to ensure the component remains securely attached to the PCB.
  • The typical lead time for the PJ-030DH-SMT-TR is 8-12 weeks. However, this may vary depending on the quantity and availability of the component. It's recommended to check with CUI Devices or an authorized distributor for the most up-to-date lead time information.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PJ-030DH-SMT-TR Overview

Use the download button to access the PJ-030DH-SMT-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PJ-03, or try a keyword search, such as DC Power Plugs or Jacks

About Same Sky

Tracing our roots back to 1989 just outside of Portland, Oregon, Same Sky® (formerly CUI Devices) is an electronic components manufacturer dedicated to nurturing the spirit of innovation by caring more than is expected, embracing evolution, taking a holistic approach, and having fun along the away. We specialize in an ever-expanding range of product technologies, including audio, interconnect, motion, relay, sensor, switch and thermal management solutions.
