PJ-042-SMT-TR Frequently Asked Questions (FAQs)

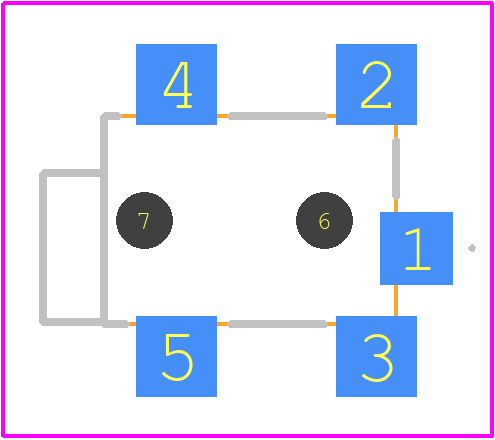

• What is the recommended land pattern for PJ-042-SMT-TR?
  The recommended land pattern for PJ-042-SMT-TR can be found in the CUI Devices' application note or by contacting their technical support team. Typically, it follows the standard SMT land pattern guidelines for a 0402 package.
• Can PJ-042-SMT-TR be used in high-temperature applications?
  While the PJ-042-SMT-TR is rated for operation up to 125°C, it's essential to consider the specific application's temperature profile and potential thermal stresses. Consult with CUI Devices' technical support or a thermal expert to ensure the component's reliability in your specific use case.
• How do I handle the PJ-042-SMT-TR during PCB assembly to prevent damage?
  Follow standard SMT assembly guidelines to prevent damage to the PJ-042-SMT-TR. Ensure proper handling, storage, and soldering techniques are used. Avoid excessive heat, moisture, or mechanical stress, and use appropriate ESD protection measures.
• Are there any specific soldering requirements for PJ-042-SMT-TR?
  CUI Devices recommends following the standard soldering profile for 0402 SMT components. A peak temperature of 240°C to 250°C and a dwell time of 1-2 seconds are typical. However, consult the datasheet or contact CUI Devices' technical support for specific guidance on soldering profiles and techniques.
• Can I use PJ-042-SMT-TR in a high-vibration or high-shock environment?
  While the PJ-042-SMT-TR is designed to be a robust component, it's crucial to evaluate the specific vibration and shock requirements of your application. Consult with CUI Devices' technical support or a mechanical engineer to ensure the component's reliability in your specific use case.
