PJ-043-SMT-TR - Same Sky

Description: 1.0 x 3.2 mm, 2.0 A, Horizontal, Surface Mount (SMT), Shielded, Dc Power Jack Connector

Download PJ-043-SMT-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

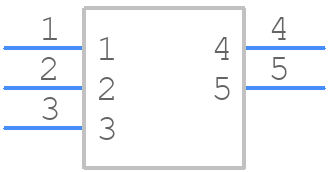

PJ-043-SMT-TR - Same Sky - PCB symbol
click to zoom
PCB Footprints

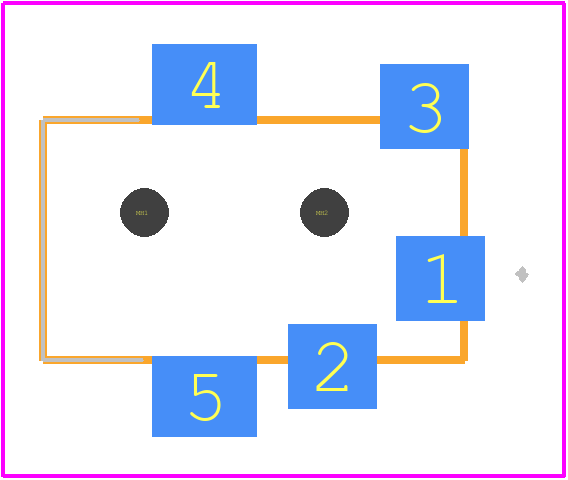

PJ-043-SMT-TR - Same Sky PCB footprint - Other - Other - PJ-043-SMT-TR-2
click to zoom
3D Models
PJ-043-SMT-TR - Same Sky - 3D model - Other - PJ-043-SMT-TR-2
click to zoom

PJ-043-SMT-TR Details

  • Manufacturer Part Number:

    PJ-043-SMT-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Same Sky

  • YTEOL:

    6.25

  • Additional Feature:

    SHIELDED

  • Body Breadth:

    0.181 inch

  • Body Depth:

    0.472 inch

  • Body Diameter:

    0.181 inch

  • Body Length:

    0.339 inch

  • Body/Shell Style:

    JACK

  • Connector Type:

    DC POWER JACK

  • Contact Finish Termination:

    SILVER

  • Insulator Material:

    POLYAMIDE9T

  • JESD-609 Code:

    e4

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Option:

    GENERAL PURPOSE

  • Packing Method:

    TR, 13 INCH

  • Pin Diameter:

    1 mm

  • Rated Current (Power):

    2 A

  • Rated Voltage:

    24 V

  • Reference Standard:

    UL

  • Termination Type:

    SURFACE MOUNT

PJ-043-SMT-TR Frequently Asked Questions (FAQs)

  • The recommended land pattern for the PJ-043-SMT-TR can be found in the CUI Devices' application note AN-103, which provides a detailed guide for PCB layout and assembly.
  • To ensure reliable soldering, follow the recommended soldering profile and temperature guidelines provided in the datasheet. Additionally, use a solder with a melting point of 217°C to 220°C, and ensure the PCB is clean and free of oxidation.
  • The PJ-043-SMT-TR is rated for operation from -40°C to 85°C. However, it's essential to note that the device's performance and reliability may degrade if operated at the extreme ends of this range.
  • While the PJ-043-SMT-TR is designed to be robust, it's essential to ensure that the PCB is properly secured and the device is adequately anchored to withstand vibrations. Consult with a mechanical engineer to ensure the design meets the required vibration specifications.
  • To prevent electrostatic discharge (ESD) damage, handle the PJ-043-SMT-TR with ESD-safe materials, and ensure that the PCB and assembly process follow ESD protection guidelines. Additionally, consider adding ESD protection devices, such as TVS diodes, to the design.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PJ-043-SMT-TR Overview

Use the download button to access the PJ-043-SMT-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PJ-04, or try a keyword search, such as DC Power Plugs or Jacks

About Same Sky

Tracing our roots back to 1989 just outside of Portland, Oregon, Same Sky® (formerly CUI Devices) is an electronic components manufacturer dedicated to nurturing the spirit of innovation by caring more than is expected, embracing evolution, taking a holistic approach, and having fun along the away. We specialize in an ever-expanding range of product technologies, including audio, interconnect, motion, relay, sensor, switch and thermal management solutions.
