Part Image

PJ-047A - Same Sky

Description: 2.0 x 6.0 mm, 2.5 A, Horizontal, Through Hole, Shielded, Dc Power Jack Connector

Download PJ-047A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PJ-047A - Same Sky - PCB symbol
click to zoom
PCB Footprints

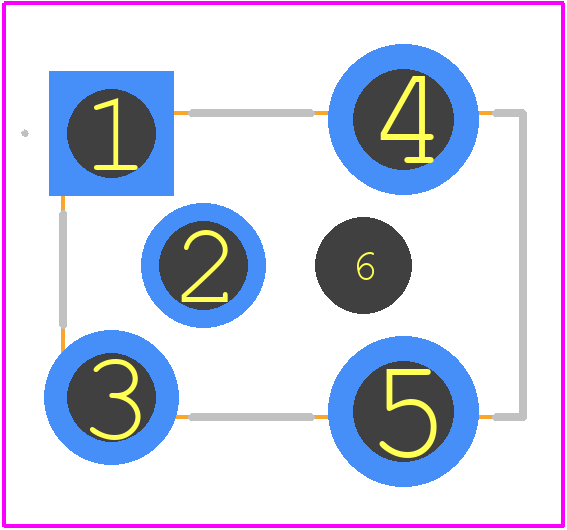

PJ-047A - Same Sky PCB footprint - Other - Other - PJ-047A-2
click to zoom
3D Models
PJ-047A - Same Sky - 3D model - Other - PJ-047A-2
click to zoom

PJ-047A Details

  • Manufacturer Part Number:

    PJ-047A

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Same Sky

  • YTEOL:

    6.25

  • Additional Feature:

    SHIELDED

  • Body Breadth:

    0.374 inch

  • Body Depth:

    0.453 inch

  • Body Length:

    0.291 inch

  • Body/Shell Style:

    JACK

  • Connector Type:

    DC POWER JACK

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Material:

    NOT APPLICABLE

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • JESD-609 Code:

    e3

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Option:

    GENERAL PURPOSE

  • Pin Diameter:

    2 mm

  • Rated Current (Power):

    2.5 A

  • Rated Voltage:

    24 V

  • Reference Standard:

    UL

  • Termination Type:

    SOLDER

PJ-047A Frequently Asked Questions (FAQs)

  • A symmetrical layout with a solid ground plane and minimal signal trace length is recommended. Keep the input and output traces separate and avoid crossing them to minimize noise and EMI.
  • Ensure good airflow around the device, use a heat sink if necessary, and follow the recommended derating curves for temperature. Also, consider using a thermal interface material to improve heat transfer.
  • The maximum recommended cable length is 3 meters (10 feet) to minimize signal attenuation and ensure reliable data transmission.
  • Yes, PJ-047A can be used in redundant or backup systems. However, ensure that the devices are properly isolated and synchronized to prevent data corruption or system malfunction.
  • Check the power supply, signal integrity, and cable connections. Use oscilloscopes or logic analyzers to debug the signal. Consult the datasheet and application notes for troubleshooting guidelines.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PJ-047A Overview

Use the download button to access the PJ-047A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PJ-04, or try a keyword search, such as DC Power Plugs or Jacks

About Same Sky

CUI Devices is an electronic components manufacturer that specializes in audio components, interconnects, motion, relay, switch and thermal management solutions. The company designs and manufacturers components for use in a wide range of industries that include aerospace, industrial, medical, and telecommunications. CUI Devices is headquartered in Lake Oswego, Oregon.
