PJ-047AH Frequently Asked Questions (FAQs)

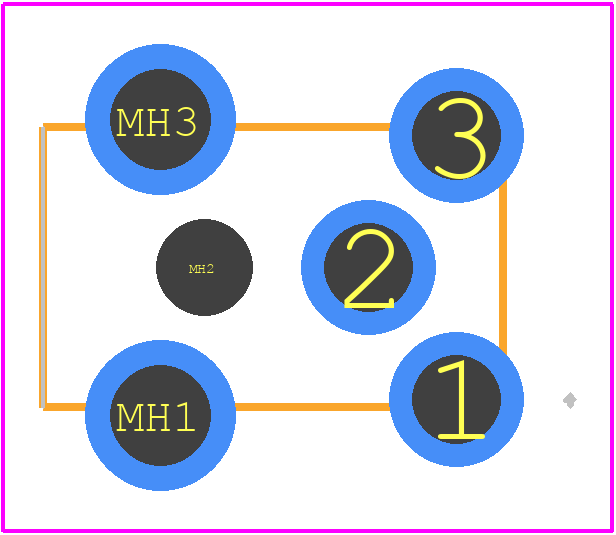

• What is the recommended PCB layout and land pattern for optimal performance?
  CUI Devices recommends following the recommended PCB layout and land pattern provided in the datasheet or application notes to ensure optimal performance and minimize signal degradation.
• How do I ensure reliable connection and minimize signal loss between the PJ-047AH and the PCB?
  To ensure reliable connection and minimize signal loss, use a soldering iron with a temperature range of 250°C to 270°C, and apply a small amount of solder paste to the PCB pads. Also, ensure the PCB is designed with a solid ground plane and adequate clearance around the connector.
• What is the maximum operating temperature range for the PJ-047AH?
  The PJ-047AH is rated for operation from -40°C to 85°C. However, it's essential to note that the operating temperature range may vary depending on the specific application and environmental conditions.
• Can I use the PJ-047AH in a high-vibration or high-shock environment?
  While the PJ-047AH is designed to withstand normal operating conditions, it's not recommended for use in high-vibration or high-shock environments without additional mechanical support or custom design considerations. Consult with CUI Devices or a qualified engineer for custom design guidance.
• What is the recommended mating cycle and lifespan for the PJ-047AH?
  The PJ-047AH is rated for a minimum of 500 mating cycles. However, the actual lifespan may vary depending on the application, usage, and environmental conditions. It's essential to follow proper handling and maintenance procedures to ensure optimal performance and extend the lifespan of the connector.
