CUI Devices recommends following the recommended PCB layout and land pattern provided in the PJ-050B evaluation board design files, which can be found on the CUI Devices website. This ensures optimal performance, minimal signal loss, and reduced EMI.
To ensure reliable connections, use a solder with a melting point above 217°C (423°F) and follow the recommended soldering profile. Additionally, apply a thin layer of solder paste to the PCB pads and use a reflow oven or a hot air rework station to minimize thermal stress.
The PJ-050B is rated for operation from -40°C to 85°C (-40°F to 185°F). However, it's essential to consider the specific application's thermal requirements and ensure the device is operated within its recommended temperature range to maintain optimal performance and reliability.
While the PJ-050B is designed to be robust, it's essential to consider the specific environmental requirements of your application. CUI Devices recommends following the recommended mounting and screw torque specifications to ensure the device can withstand vibrations and shocks. Additionally, consider using a conformal coating or potting compound to enhance reliability in harsh environments.
To troubleshoot issues with the PJ-050B, start by reviewing the datasheet and application notes. Check the PCB layout, signal routing, and power supply design for potential issues. Use oscilloscopes and signal analyzers to identify signal integrity problems. If issues persist, contact CUI Devices' technical support for further assistance.
Trust Checks
No trust score is available for this model.
Trust Score Unavailable
Sponsored
PJ-050B Overview

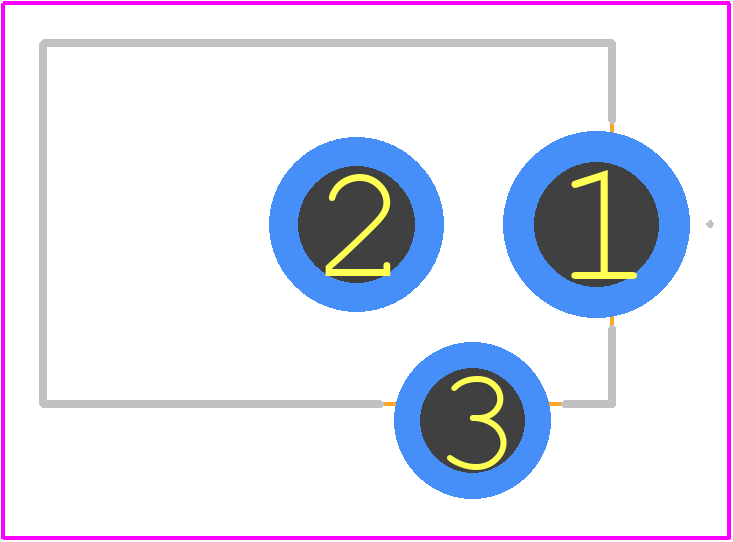

Use the download button to access the PJ-050B 3D model. You can still request or build the schematic symbol and PCB footprint by using the respective build or request forms on this page.
To find more CAD model downloads similar to this part, try a partial part number search, like PJ-05,
or try a keyword search, such as DC Power Plugs or Jacks
About Same Sky
CUI Devices is an electronic components manufacturer that specializes in audio components, interconnects, motion, relay, switch and thermal management solutions. The company designs and manufacturers components for use in a wide range of industries that include aerospace, industrial, medical, and telecommunications.
CUI Devices is headquartered in Lake Oswego, Oregon.
