PJ-051B - Same Sky

Description: 2.5 x 6.0 mm, 2.5 A, Horizontal, Through Hole, Shielded, Dc Power Jack Connector

Download PJ-051B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PJ-051B - Same Sky - PCB symbol
click to zoom
PCB Footprints

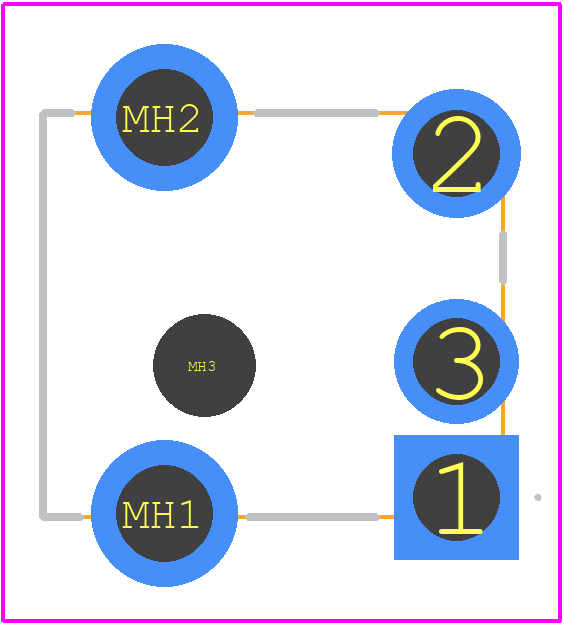

PJ-051B - Same Sky PCB footprint - Other - Other - PJ-051B-1
click to zoom
3D Models
PJ-051B - Same Sky - 3D model - Other - PJ-051B-1
click to zoom

PJ-051B Details

  • Manufacturer Part Number:

    PJ-051B

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Same Sky

  • YTEOL:

    6.25

  • Additional Feature:

    LOW PROFILE, SHIELDED

  • Body Breadth:

    0.287 inch

  • Body Depth:

    0.453 inch

  • Body Length:

    0.398 inch

  • Body/Shell Style:

    JACK

  • Connector Type:

    DC POWER JACK

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Material:

    NOT APPLICABLE

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • JESD-609 Code:

    e3

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Option:

    GENERAL PURPOSE

  • Pin Diameter:

    2.5 mm

  • Rated Current (Power):

    2.5 A

  • Rated Voltage:

    24 V

  • Reference Standard:

    UL

  • Termination Type:

    SOLDER

PJ-051B Frequently Asked Questions (FAQs)

  • A good PCB layout for the PJ-051B involves keeping the input and output traces separate, using a solid ground plane, and minimizing the length of the input and output traces to reduce EMI and noise.
  • To decouple the PJ-051B, add a 10uF ceramic capacitor between the input and ground, and a 100nF ceramic capacitor between the output and ground. This will help reduce high-frequency noise and ripple.
  • The PJ-051B is rated for operation in an ambient temperature range of -40°C to +85°C. However, it's recommended to derate the output power by 1% for every 1°C above 60°C to ensure reliable operation.
  • Yes, the PJ-051B can be used in a redundant or parallel configuration to increase the total power output. However, it's essential to ensure that the units are synchronized and properly connected to avoid any potential issues.
  • The recommended input voltage range for the PJ-051B is 36V to 72V. Operating the device outside this range may affect its performance, efficiency, and reliability.
