PJ-057AH - Same Sky

Description: 2.0 x 6.3 mm, 5.0 A, Horizontal, Through Hole, Pick-n-Place Top, Dc Power Jack Connector

Download PJ-057AH Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PJ-057AH - Same Sky - PCB symbol
click to zoom
PCB Footprints

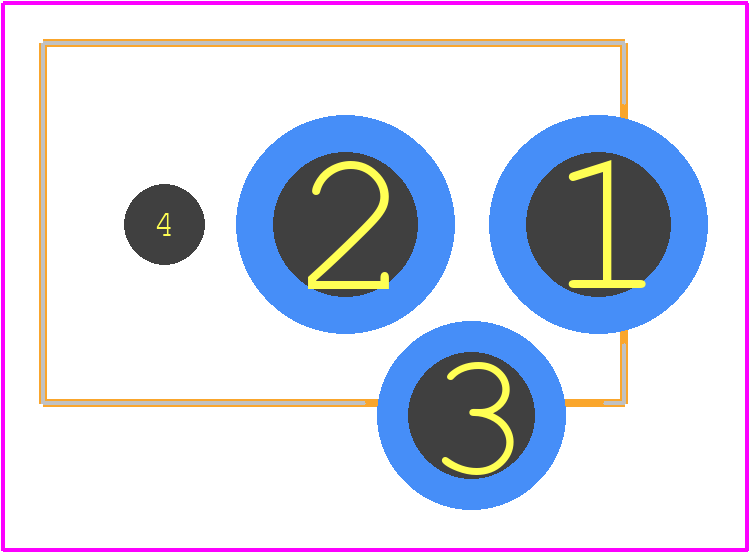

PJ-057AH - Same Sky PCB footprint - Other - Other - PJ-057AH-1
click to zoom
3D Models
PJ-057AH - Same Sky - 3D model - Other - PJ-057AH-1
click to zoom

PJ-057AH Details

  • Manufacturer Part Number:

    PJ-057AH

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Same Sky

  • YTEOL:

    6.25

  • Body/Shell Style:

    JACK

  • Connector Type:

    DC POWER JACK

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Pin Diameter:

    2 mm

  • Rated Current (Power):

    5 A

  • Rated Voltage:

    16 V

  • Termination Type:

    SOLDER
