PJ-057BH Frequently Asked Questions (FAQs)

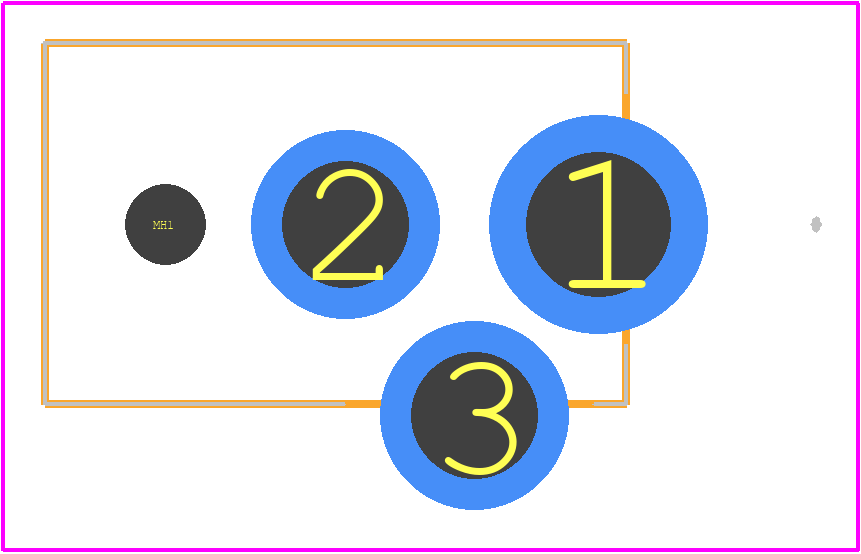

• What is the recommended PCB layout and land pattern for the PJ-057BH?
  CUI Devices provides a recommended PCB layout and land pattern in their application notes or design guides, which can be found on their website or through direct contact with their technical support team.
• How do I ensure reliable connections and prevent damage during the soldering process?
  To ensure reliable connections and prevent damage, follow the recommended soldering temperature and time profiles, and use a solder with a melting point compatible with the component's rating. Additionally, use a soldering iron with a fine tip and avoid applying excessive force or pressure during the soldering process.
• What is the maximum operating temperature range for the PJ-057BH?
  While the datasheet specifies an operating temperature range of -40°C to 85°C, it's essential to note that the component's performance and reliability may degrade at extreme temperatures. For optimal performance, it's recommended to operate the PJ-057BH within a temperature range of 0°C to 70°C.
• Can I use the PJ-057BH in a high-vibration or high-shock environment?
  While the PJ-057BH is designed to be robust, it's essential to evaluate the component's suitability for high-vibration or high-shock environments. CUI Devices may provide additional information or guidance on the component's mechanical stress tolerance through their technical support team or application notes.
• How do I handle ESD protection when working with the PJ-057BH?
  To prevent electrostatic discharge (ESD) damage, follow proper ESD handling and storage procedures, such as using ESD-safe workstations, wrist straps, and packaging materials. Additionally, ensure that the PJ-057BH is properly grounded during handling and assembly.
