PJ-058BH Frequently Asked Questions (FAQs)

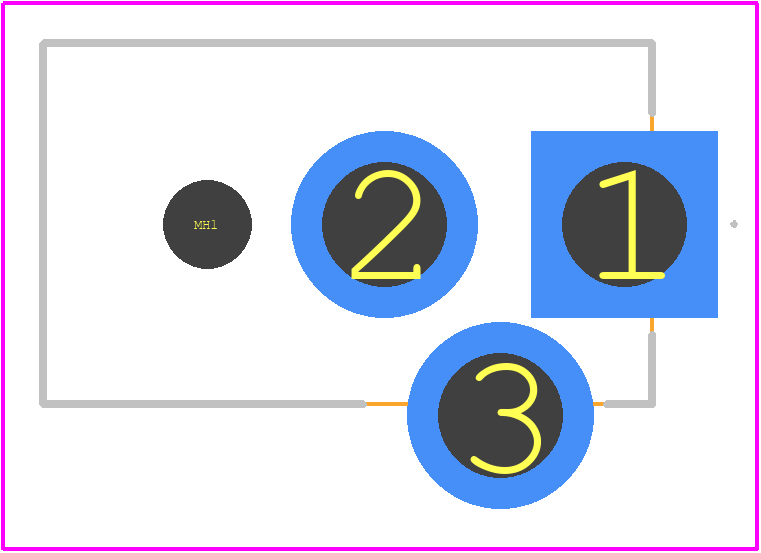

• What is the recommended PCB layout and land pattern for the PJ-058BH?
  CUI Devices provides a recommended PCB layout and land pattern in their application notes or design guides. It's essential to follow these guidelines to ensure proper soldering and to prevent thermal issues.
• How do I ensure reliable connections and prevent whisker growth on the PJ-058BH?
  To prevent whisker growth, use a hot air solder leveling (HASL) or immersion tin finish on the PCB. Ensure the connector is properly soldered, and the PCB is clean and dry. Avoid using excessive solder or flux, as it can lead to whisker growth.
• What is the maximum operating temperature range for the PJ-058BH?
  While the datasheet specifies an operating temperature range of -40°C to 85°C, it's essential to consider the specific application and environmental conditions. In extreme temperatures, the connector's performance may degrade, and its lifespan may be affected.
• Can I use the PJ-058BH in high-vibration or high-shock applications?
  The PJ-058BH is designed for general-purpose applications, but it may not be suitable for high-vibration or high-shock environments. For such applications, consider using connectors with specialized designs, such as those with locking mechanisms or reinforced structures.
• How do I handle ESD protection when working with the PJ-058BH?
  To prevent electrostatic discharge (ESD) damage, use ESD-protective equipment, such as wrist straps, mats, or bags. Ground yourself before handling the connector, and avoid touching the pins or sensitive components.
