PJ-059BH - Same Sky

PJ-059BH Frequently Asked Questions (FAQs)

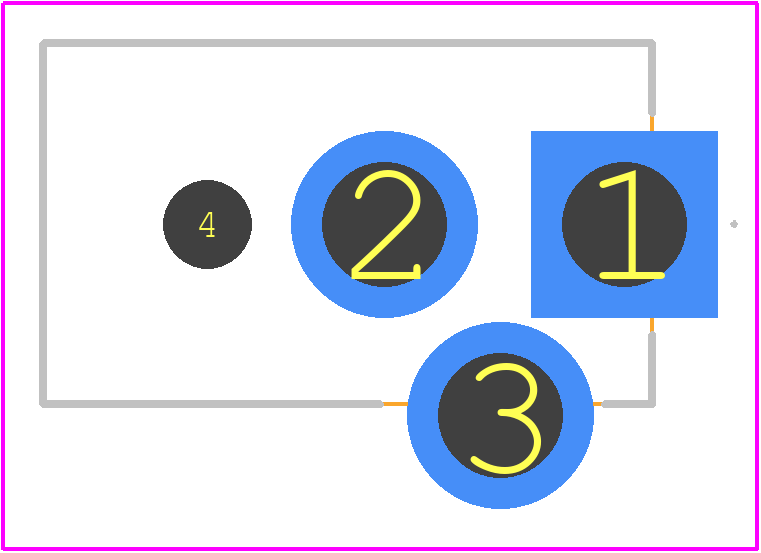

• What is the recommended PCB layout and land pattern for optimal performance?
  CUI Devices recommends following the recommended PCB layout and land pattern provided in the datasheet or application notes to ensure optimal performance and minimize signal degradation.
• How do I ensure reliable connection and minimize vibration effects?
  To ensure reliable connection and minimize vibration effects, use a secure and reliable connector mating system, and consider using a connector with a locking mechanism or screw-down terminals. Additionally, ensure proper cable management and strain relief.
• What are the environmental and operating temperature ranges for this connector?
  The PJ-059BH is rated for operation in temperatures ranging from -40°C to 85°C, and can withstand storage temperatures from -40°C to 125°C. However, it's essential to consult the datasheet for specific temperature ratings and derating information.
• Are there any specific EMI/EMC considerations for this connector?
  Yes, the PJ-059BH is designed to meet EMI/EMC requirements, but it's essential to follow proper shielding and grounding techniques, and consider using EMI filters or shielding materials to minimize electromagnetic interference.
• What is the recommended mating cycle and lifespan for this connector?
  The PJ-059BH is rated for a minimum of 500 mating cycles, but the actual lifespan may vary depending on the application, environment, and usage. It's essential to consult the datasheet and follow proper maintenance and cleaning procedures to ensure optimal performance.
