PJ-063AH - Same Sky

Description: 2.0 x 6.5 mm, 8.0 A, Horizontal, Through Hole, Shielded, Kinked Pins, Dc Power Jack Connector

Download PJ-063AH Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PJ-063AH - Same Sky - PCB symbol
click to zoom
PCB Footprints

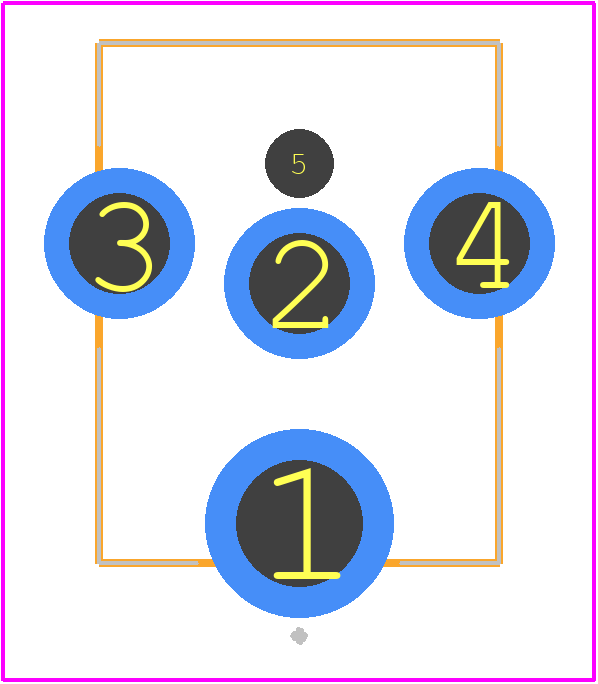

PJ-063AH - Same Sky PCB footprint - Other - Other - PJ-063AH-2
click to zoom
3D Models
PJ-063AH - Same Sky - 3D model - Other - PJ-063AH-2
click to zoom

PJ-063AH Details

  • Manufacturer Part Number:

    PJ-063AH

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Same Sky

  • YTEOL:

    6.25

  • Additional Feature:

    SHIELDED

  • Body Breadth:

    0.354 inch

  • Body Depth:

    0.512 inch

  • Body Length:

    0.394 inch

  • Body/Shell Style:

    JACK

  • Connector Type:

    DC POWER JACK

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Silver (Ag)

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Option:

    GENERAL PURPOSE

  • Pin Diameter:

    2 mm

  • Rated Current (Power):

    8 A

  • Rated Voltage:

    24 V

  • Reference Standard:

    UL

  • Termination Type:

    SOLDER

PJ-063AH Frequently Asked Questions (FAQs)

  • A symmetrical layout with a solid ground plane and minimal signal trace length is recommended. Keep the input and output traces separate and avoid crossing them over each other.
  • Ensure proper heat sinking, keep the device away from heat sources, and follow the recommended derating curves for temperature. Also, consider using a thermal interface material to improve heat transfer.
  • The maximum cable length depends on the specific application and signal frequency. As a general guideline, keep the cable length below 3 meters to minimize signal attenuation and reflections.
  • Yes, PJ-063AH can be used in redundant or backup power systems. However, ensure that the device is properly synchronized with the primary power source to avoid any conflicts or damage.
  • Check the input voltage, output load, and ambient temperature. Verify that the device is properly soldered and the PCB layout is correct. Use an oscilloscope to monitor the output voltage and current waveforms.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PJ-063AH Overview

Use the download button to access the PJ-063AH schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PJ-06, or try a keyword search, such as DC Power Plugs or Jacks

About Same Sky

CUI Devices is an electronic components manufacturer that specializes in audio components, interconnects, motion, relay, switch and thermal management solutions. The company designs and manufacturers components for use in a wide range of industries that include aerospace, industrial, medical, and telecommunications. CUI Devices is headquartered in Lake Oswego, Oregon.
