PJ-064A - Same Sky

Description: 2.0 x 5.7 mm, 5.0 A, Vertical, Panel Mount, PC Pins, Dc Power Jack Connector

Download PJ-064A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PJ-064A - Same Sky - PCB symbol
click to zoom
PCB Footprints

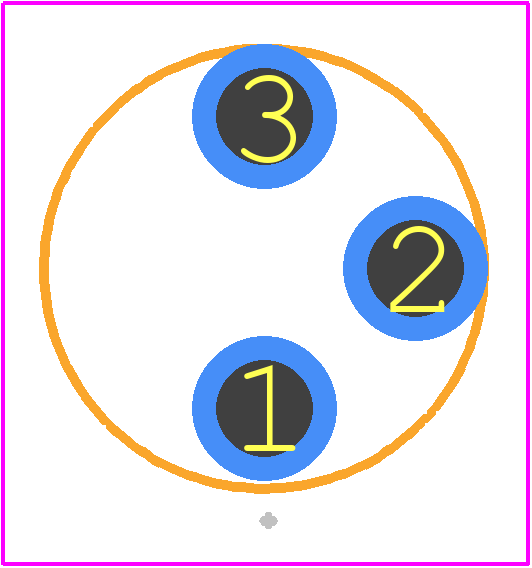

PJ-064A - Same Sky PCB footprint - Other - Other - PJ-064A-2
click to zoom
3D Models
PJ-064A - Same Sky - 3D model - Other - PJ-064A-2
click to zoom

PJ-064A Details

  • Manufacturer Part Number:

    PJ-064A

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Same Sky

  • YTEOL:

    6.25

  • Body/Shell Style:

    JACK

  • Connector Type:

    DC POWER JACK

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Silver (Ag)

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mounting Type:

    BOARD AND PANEL

  • Option:

    GENERAL PURPOSE

  • Pin Diameter:

    2 mm

  • Rated Current (Power):

    5 A

  • Rated Voltage:

    24 V

  • Termination Type:

    SOLDER

PJ-064A Frequently Asked Questions (FAQs)

  • A symmetrical layout with a solid ground plane and minimal signal trace length is recommended. Keep the input and output traces separate and avoid crossing them over each other.
  • Use a 10uF ceramic capacitor in parallel with a 100nF ceramic capacitor, both connected between the input and ground pins. Place them as close to the PJ-064A as possible.
  • The PJ-064A is rated for a maximum input voltage of 6V. Exceeding this voltage may damage the device.
  • The PJ-064A is rated for operation up to 85°C. However, derating the output current is recommended for temperatures above 70°C to ensure reliability.
  • Check the input voltage, output voltage, and output current. Verify that the device is properly decoupled and the PCB layout is correct. Consult the datasheet and application notes for further guidance.
