Technical Content
Part Image

PJ-066A - Same Sky

Description: 2.0 x 5.7 mm, 5.0 A, Horizontal, Panel Mount, Dc Power Jack Connector

Download PJ-066A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PJ-066A - Same Sky - PCB symbol
click to zoom
PCB Footprints

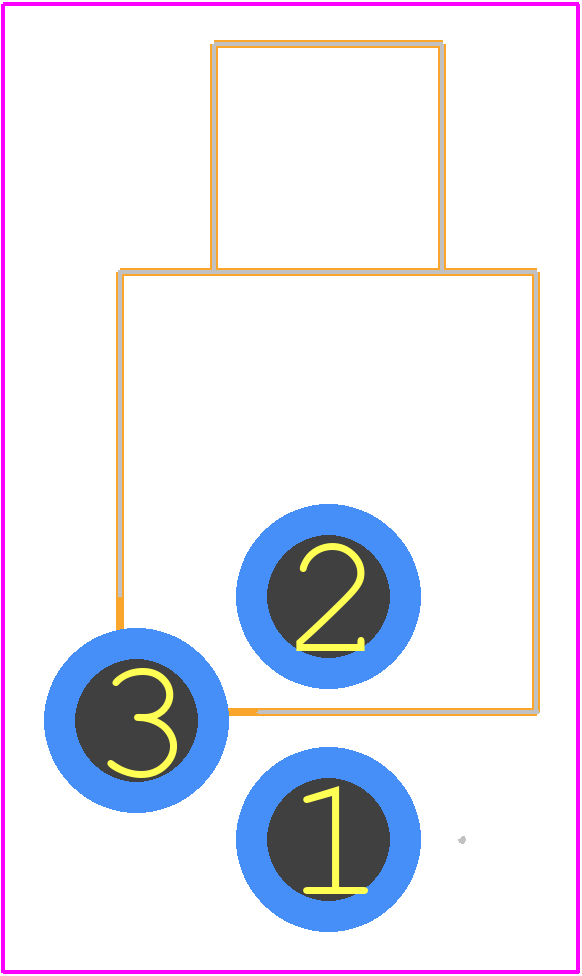

PJ-066A - Same Sky PCB footprint - Other - Other - PJ-066A-1
click to zoom
3D Models
PJ-066A - Same Sky - 3D model - Other - PJ-066A-1
click to zoom

PJ-066A Details

  • Manufacturer Part Number:

    PJ-066A

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Same Sky

  • YTEOL:

    6.25

  • Body/Shell Style:

    JACK

  • Connector Type:

    DC POWER JACK

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Silver (Ag)

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mounting Type:

    BOARD AND PANEL

  • Option:

    GENERAL PURPOSE

  • Pin Diameter:

    2 mm

  • Rated Current (Power):

    5 A

  • Rated Voltage:

    24 V

  • Termination Type:

    SOLDER

PJ-066A Frequently Asked Questions (FAQs)

  • A symmetrical layout with a solid ground plane and minimal signal trace length is recommended. Keep the input and output traces separate and avoid crossing them to minimize noise and EMI.
  • Ensure proper thermal management by providing adequate airflow, using a heat sink if necessary, and following the recommended derating guidelines for high-temperature operation.
  • The maximum cable length is not explicitly stated, but as a general rule, keep the cable length as short as possible (less than 10 inches) to minimize signal degradation and EMI.
  • Yes, the PJ-066A is designed for hot-swappable applications. However, ensure that the system is designed to handle the inrush current and voltage transients during hot-swapping.
  • Use a systematic approach to troubleshoot issues, checking the input voltage, output voltage, and current draw. Use an oscilloscope to analyze the output waveform and identify any anomalies.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PJ-066A Overview

Use the download button to access the PJ-066A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PJ-06, or try a keyword search, such as DC Power Plugs or Jacks

About Same Sky

CUI Devices is an electronic components manufacturer that specializes in audio components, interconnects, motion, relay, switch and thermal management solutions. The company designs and manufacturers components for use in a wide range of industries that include aerospace, industrial, medical, and telecommunications. CUI Devices is headquartered in Lake Oswego, Oregon.
