PJ-066B - Same Sky

Description: 2.5 x 5.7 mm, 5.0 A, Horizontal, Panel Mount, Dc Power Jack Connector

Download PJ-066B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PJ-066B - Same Sky - PCB symbol
click to zoom
PCB Footprints

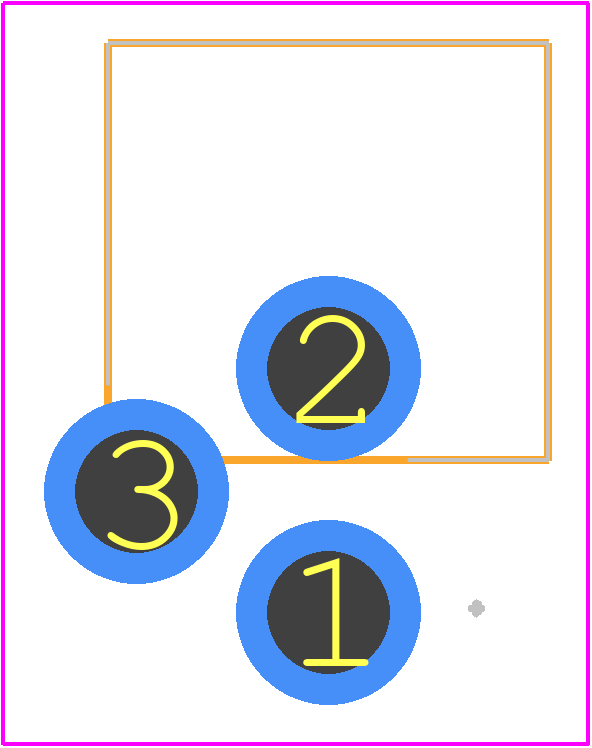

PJ-066B - Same Sky PCB footprint - Other - Other - PJ-066B
click to zoom
3D Models
PJ-066B - Same Sky - 3D model - Other - PJ-066B
click to zoom

PJ-066B Details

  • Manufacturer Part Number:

    PJ-066B

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Same Sky

  • YTEOL:

    6.25

  • Body Diameter:

    0.433 inch

  • Body/Shell Style:

    JACK

  • Connector Type:

    DC POWER JACK

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Silver (Ag)

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mounting Type:

    BOARD AND PANEL

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -25 °C

  • Option:

    GENERAL PURPOSE

  • Pin Diameter:

    2.5 mm

  • Rated Current (Power):

    5 A

  • Rated Voltage:

    24 V

  • Termination Type:

    SOLDER

PJ-066B Frequently Asked Questions (FAQs)

  • A symmetrical layout with a solid ground plane and minimal signal trace length is recommended. Keep the input and output traces separate and avoid crossing them.
  • Ensure proper thermal management by providing adequate airflow, using a heat sink if necessary, and following the recommended derating guidelines for high-temperature operation.
  • The maximum recommended cable length is 3 feet (0.9 meters) for the input and output connectors to minimize signal degradation and ensure reliable operation.
  • Yes, the PJ-066B can be used in redundant or parallel configurations, but ensure proper synchronization and isolation to prevent oscillations and ensure reliable operation.
  • Use a combination of common-mode chokes, differential-mode chokes, and shielding to minimize EMI emissions and susceptibility. Follow the recommended layout and grounding practices to ensure effective EMI mitigation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
