PJ-067A - Same Sky

Description: 2.0 x 5.7 mm, 5.0 A, Horizontal, Panel Mount, Dc Power Jack Connector

Download PJ-067A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PJ-067A - Same Sky - PCB symbol
click to zoom
PCB Footprints

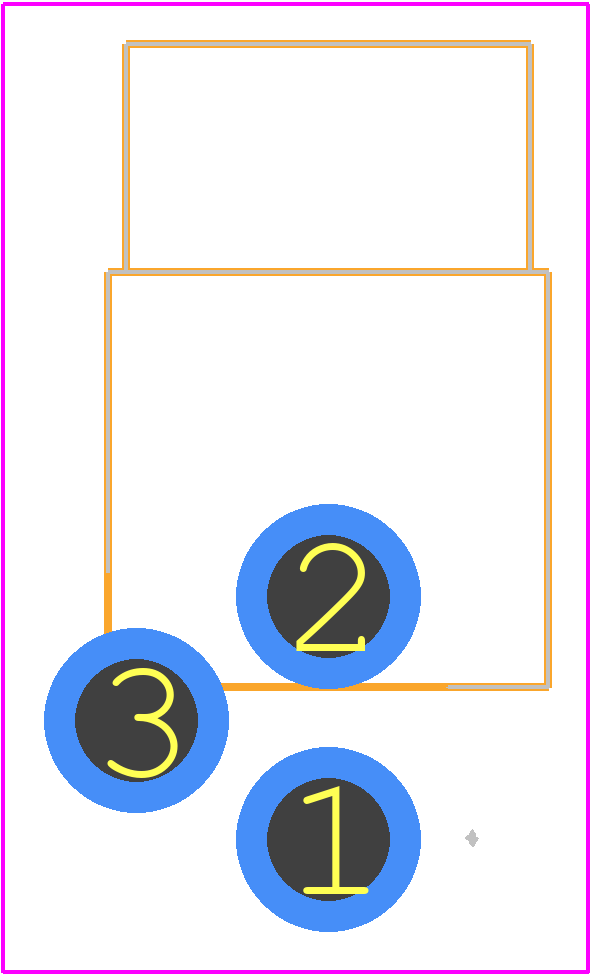

PJ-067A - Same Sky PCB footprint - Other - Other - PJ-067A-2
click to zoom
3D Models
PJ-067A - Same Sky - 3D model - Other - PJ-067A-2
click to zoom

PJ-067A Details

  • Manufacturer Part Number:

    PJ-067A

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Same Sky

  • YTEOL:

    6.25

  • Body Depth:

    0.633 inch

  • Body Diameter:

    0.433 inch

  • Body/Shell Style:

    JACK

  • Connector Type:

    DC POWER JACK

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Silver (Ag)

  • Contact Material:

    NOT APPLICABLE

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • JESD-609 Code:

    e4

  • Mounting Type:

    CABLE AND PANEL

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -25 °C

  • Option:

    GENERAL PURPOSE

  • Pin Diameter:

    2 mm

  • Rated Current (Power):

    5 A

  • Rated Voltage:

    24 V

  • Termination Type:

    SOLDER

PJ-067A Frequently Asked Questions (FAQs)

  • A symmetrical layout with a solid ground plane and minimal signal trace length is recommended. Keep the input and output traces separate and avoid crossing them to minimize noise and EMI.
  • Ensure proper thermal management by providing adequate airflow, using a heat sink if necessary, and following the recommended derating guidelines for temperature and input voltage.
  • Exceeding the maximum input voltage can cause internal component damage, reduced lifespan, or even complete failure. Always ensure the input voltage is within the recommended range.
  • Yes, but ensure the module is properly secured to the PCB and consider using vibration-dampening materials or potting compounds to minimize the effects of vibration.
  • Start by verifying the input voltage, checking for proper connections, and ensuring the module is properly soldered. Use an oscilloscope to analyze the output waveform and check for signs of overheating or electrical overstress.
