PJ-067B - Same Sky

PJ-067B Frequently Asked Questions (FAQs)

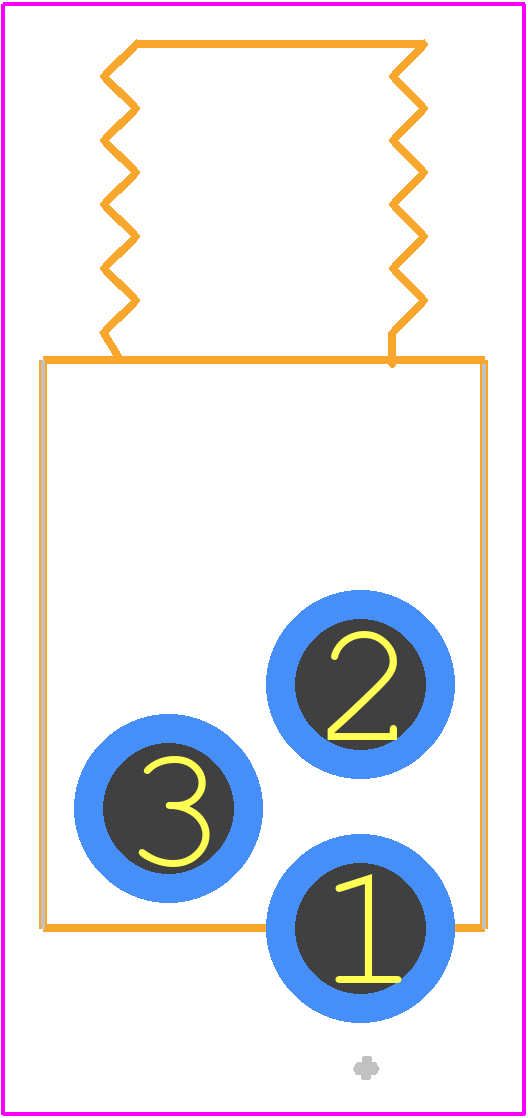

• What is the recommended PCB layout and land pattern for optimal performance?
  CUI Devices recommends following the recommended land pattern and PCB layout guidelines provided in the datasheet. Additionally, it's essential to ensure a solid ground plane, minimize trace lengths, and use a 4-layer PCB to reduce EMI and improve signal integrity.
• How do I ensure reliable connectivity and prevent damage during mating and unmating?
  To ensure reliable connectivity, handle the connector with care, avoid touching the contacts, and use a gentle mating and unmating process. It's also recommended to use a connector savers or protective caps when not in use to prevent damage and contamination.
• What is the maximum operating temperature range for the PJ-067B?
  The PJ-067B is rated for operation from -40°C to 105°C. However, it's essential to note that the operating temperature range may vary depending on the specific application and environmental conditions.
• Can I use the PJ-067B in high-vibration or high-shock environments?
  While the PJ-067B is designed to be rugged, it's essential to evaluate the connector's performance in your specific application. CUI Devices recommends consulting with their technical support team to determine the connector's suitability for high-vibration or high-shock environments.
• Are there any specific cleaning and maintenance procedures recommended for the PJ-067B?
  Yes, CUI Devices recommends using a soft, dry brush to remove any debris or contaminants from the connector. Avoid using harsh chemicals, abrasive materials, or excessive force, which can damage the connector.
