PJ-069B-SMT-TR - Same Sky

Description: PJ-069B-SMT-TR - 2.5 x 5.9 mm, 5.0 A, Horizontal, Mid Mount (SMT), Shielded, Dc Power Jack Connector

Download PJ-069B-SMT-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

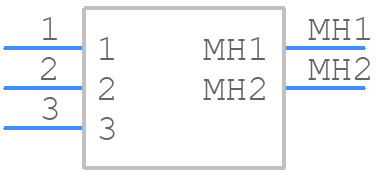

PJ-069B-SMT-TR - Same Sky - PCB symbol
click to zoom
PCB Footprints

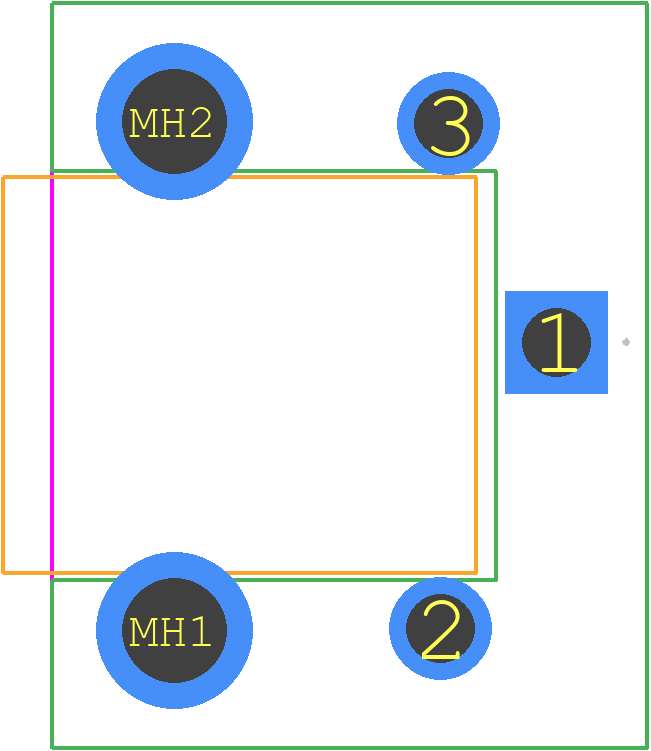

PJ-069B-SMT-TR - Same Sky PCB footprint - Other - Other - PJ-069B-SMT-TR
click to zoom
3D Models
PJ-069B-SMT-TR - Same Sky - 3D model - Other - PJ-069B-SMT-TR
click to zoom

PJ-069B-SMT-TR Details

  • Manufacturer Part Number:

    PJ-069B-SMT-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Same Sky

  • YTEOL:

    6.25

  • Body/Shell Style:

    JACK

  • Connector Type:

    DC POWER JACK

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Packing Method:

    TR

  • Pin Diameter:

    2.5 mm

  • Rated Current (Power):

    5 A

  • Rated Voltage:

    24 V

  • Termination Type:

    SURFACE MOUNT

PJ-069B-SMT-TR Frequently Asked Questions (FAQs)

  • The recommended land pattern for PJ-069B-SMT-TR can be found in the CUI Devices' application note or by contacting their technical support team.
  • Handle the PJ-069B-SMT-TR by the body, avoid touching the pins, and use anti-static wrist straps or mats to prevent ESD damage.
  • The maximum storage temperature for PJ-069B-SMT-TR is typically 40°C, but it's recommended to check the datasheet or contact CUI Devices for specific storage temperature guidelines.
  • While PJ-069B-SMT-TR is designed to be robust, it's recommended to consult with CUI Devices or perform additional testing to ensure the component can withstand the specific vibration requirements of your application.
  • Follow the recommended soldering profile and techniques, such as using a soldering iron with a temperature range of 200-250°C, and ensure the solder joints are clean and free of oxidation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PJ-069B-SMT-TR Overview

Use the download button to access the PJ-069B-SMT-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PJ-06, or try a keyword search, such as DC Power Plugs or Jacks

About Same Sky

Tracing our roots back to 1989 just outside of Portland, Oregon, Same Sky® (formerly CUI Devices) is an electronic components manufacturer dedicated to nurturing the spirit of innovation by caring more than is expected, embracing evolution, taking a holistic approach, and having fun along the away. We specialize in an ever-expanding range of product technologies, including audio, interconnect, motion, relay, sensor, switch and thermal management solutions.
