Part Image

PJ-071 - Same Sky

Description: 0.8 x 3.35 mm, 2.0 A, Horizontal, Through Hole, Shielded, 3 Conductor, Dc Power Jack Connector, 24 Vdc, 2A, 30 mΩ, 500 Vac, -25°C to +85°C

Download PJ-071 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

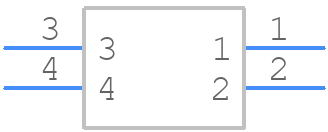

PJ-071 - Same Sky - PCB symbol
click to zoom
PCB Footprints

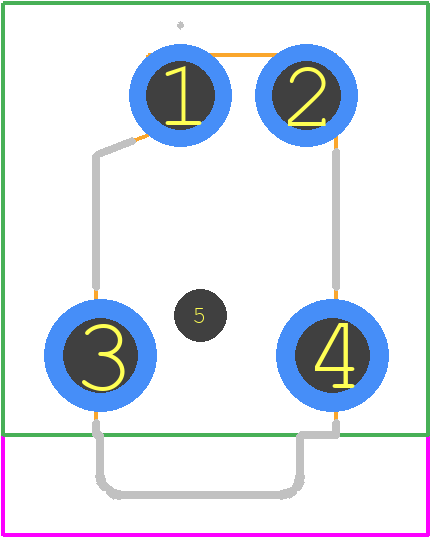

PJ-071 - Same Sky PCB footprint - Other - Other - PJ-071-3
click to zoom
3D Models
PJ-071 - Same Sky - 3D model - Other - PJ-071-3
click to zoom

PJ-071 Details

  • Manufacturer Part Number:

    PJ-071

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Same Sky

  • YTEOL:

    6.25

  • Additional Feature:

    LOW PROFILE; SHIELDED

  • Body Breadth:

    0.169 inch

  • Body Depth:

    0.433 inch

  • Body Length:

    0.236 inch

  • Body/Shell Style:

    JACK

  • Connector Type:

    DC POWER JACK

  • Contact Finish Termination:

    TIN

  • Insulator Material:

    POLYAMIDE66

  • JESD-609 Code:

    e3

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Option:

    GENERAL PURPOSE

  • Pin Diameter:

    0.8 mm

  • Rated Current (Power):

    2 A

  • Rated Voltage:

    24 V

  • Reference Standard:

    UL

  • Termination Type:

    SOLDER

PJ-071 Frequently Asked Questions (FAQs)

  • A symmetrical layout with a solid ground plane and minimal signal trace length is recommended. Keep the input and output traces separate and avoid crossing them to minimize noise and crosstalk.
  • Ensure good airflow around the device, use a heat sink if necessary, and follow the recommended derating curves for temperature. Also, consider using a thermally conductive interface material to improve heat transfer.
  • The maximum recommended cable length is 3 meters (10 feet) to minimize signal attenuation and ensure reliable data transmission. Use a shielded cable and follow proper termination techniques to reduce EMI.
  • Yes, PJ-071 can be used in redundant or duplicated systems. However, ensure that the devices are properly synchronized and configured to avoid data corruption or inconsistencies.
  • Use a logic analyzer or oscilloscope to monitor the signal quality and timing. Check the power supply, ground connections, and signal integrity. Verify that the device is properly configured and that the firmware is up-to-date.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PJ-071 Overview

Use the download button to access the PJ-071 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PJ-07, or try a keyword search, such as DC Power Plugs or Jacks

About Same Sky

Tracing our roots back to 1989 just outside of Portland, Oregon, Same Sky® (formerly CUI Devices) is an electronic components manufacturer dedicated to nurturing the spirit of innovation by caring more than is expected, embracing evolution, taking a holistic approach, and having fun along the away. We specialize in an ever-expanding range of product technologies, including audio, interconnect, motion, relay, sensor, switch and thermal management solutions.
