PJ-079BH - Same Sky

Description: 2.5 x 5.8 mm, 5.0 A, Horizontal, Through Hole, Shielded, Dc Power Jack Connector

Download PJ-079BH Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PJ-079BH - Same Sky - PCB symbol
click to zoom
PCB Footprints

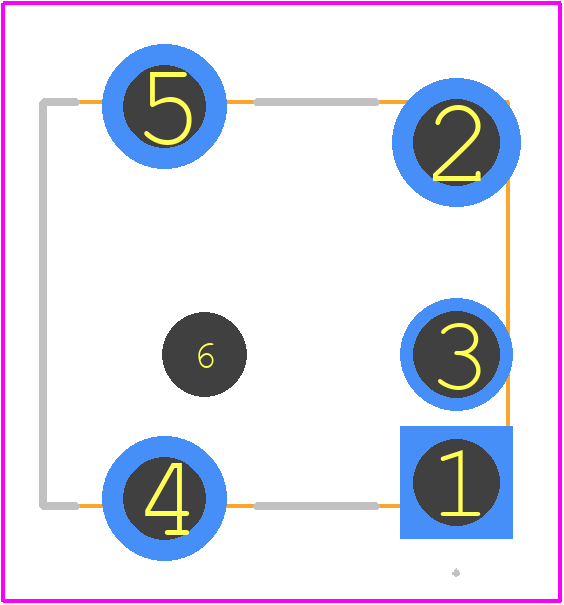

PJ-079BH - Same Sky PCB footprint - Other - Other - PJ-079BH-5
click to zoom
3D Models
PJ-079BH - Same Sky - 3D model - Other - PJ-079BH-5
click to zoom

PJ-079BH Details

  • Manufacturer Part Number:

    PJ-079BH

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Same Sky

  • YTEOL:

    6.25

  • Additional Feature:

    SHIELDED

  • Body Breadth:

    0.287 inch

  • Body Depth:

    0.453 inch

  • Body Length:

    0.398 inch

  • Body/Shell Style:

    JACK

  • Connector Type:

    DC POWER JACK

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Material:

    NOT APPLICABLE

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Option:

    GENERAL PURPOSE

  • Pin Diameter:

    2.5 mm

  • Rated Current (Power):

    5 A

  • Rated Voltage:

    24 V

  • Reference Standard:

    UL

  • Termination Type:

    SOLDER

PJ-079BH Frequently Asked Questions (FAQs)

  • CUI Devices recommends following the recommended PCB layout and land pattern provided in the datasheet or application notes to ensure optimal performance and minimize signal degradation.
  • To ensure reliable connections, use a gentle touch and avoid applying excessive force or pressure during handling and assembly. Use a soft, dry brush to remove any debris or dust from the connector contacts.
  • The PJ-079BH is rated for operation from -40°C to 85°C. Operating outside this range may affect performance, reliability, and lifespan. Consult the datasheet for specific temperature-related specifications.
  • While the PJ-079BH is designed to withstand normal operating conditions, it may not be suitable for extreme vibration or shock environments. Consult CUI Devices or a qualified engineer to determine the connector's suitability for your specific application.
  • The recommended mating and unmating forces for the PJ-079BH are typically specified in the datasheet or application notes. Excessive force can damage the connector, so it's essential to follow the recommended guidelines.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PJ-079BH Overview

Use the download button to access the PJ-079BH schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PJ-07, or try a keyword search, such as DC Power Plugs or Jacks

About Same Sky

CUI Devices is an electronic components manufacturer that specializes in audio components, interconnects, motion, relay, switch and thermal management solutions. The company designs and manufacturers components for use in a wide range of industries that include aerospace, industrial, medical, and telecommunications. CUI Devices is headquartered in Lake Oswego, Oregon.
