PJ-081BH - Same Sky

Description: DC Power Connectors power jack, 2.5 x 5.9 mm, rt, through hole, high current, w/ shielding, 1 switch

Download PJ-081BH Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PJ-081BH - Same Sky - PCB symbol
click to zoom
PCB Footprints

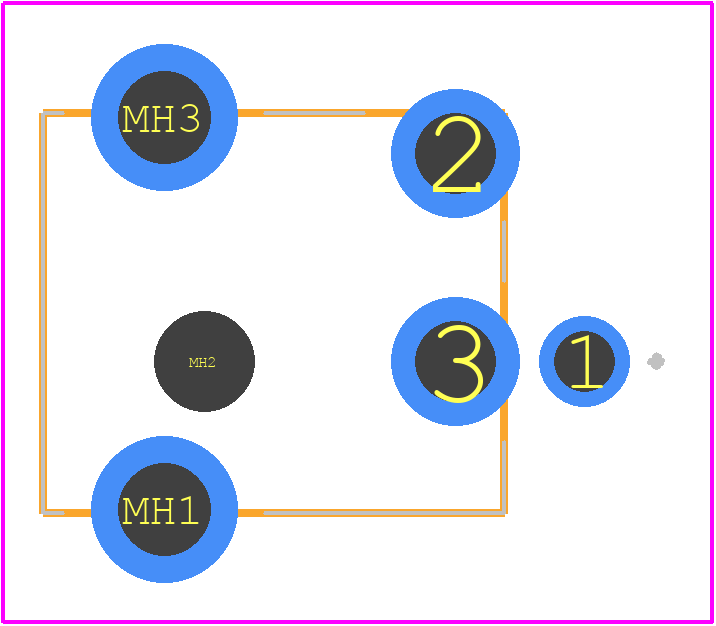

PJ-081BH - Same Sky PCB footprint - Other - Other - PJ-081BH-3
click to zoom
3D Models
PJ-081BH - Same Sky - 3D model - Other - PJ-081BH-3
click to zoom

PJ-081BH Details

  • Manufacturer Part Number:

    PJ-081BH

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Same Sky

  • YTEOL:

    0

  • Additional Feature:

    SHIELDED

  • Body Breadth:

    0.283 inch

  • Body Depth:

    0.531 inch

  • Body Length:

    0.394 inch

  • Body/Shell Style:

    JACK

  • Connector Type:

    DC POWER JACK

  • Insulator Material:

    POLYAMIDE10T

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Option:

    GENERAL PURPOSE

  • Pin Diameter:

    2.5 mm

  • Rated Current (Power):

    5 A

  • Rated Voltage:

    24 V

  • Reference Standard:

    UL

  • Termination Type:

    SOLDER

PJ-081BH Frequently Asked Questions (FAQs)

  • The recommended storage temperature for PJ-081BH is -20°C to 40°C (-4°F to 104°F), as specified by Same Sky.
  • Yes, PJ-081BH is suitable for outdoor use, but it's essential to ensure proper sealing and protection from environmental factors like moisture, dust, and extreme temperatures.
  • The typical lead time for PJ-081BH varies depending on the quantity and availability. It's recommended to contact Same Sky or an authorized distributor for the most up-to-date lead time information.
  • Yes, PJ-081BH is compliant with RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) regulations, making it suitable for use in EU and other regions with similar regulations.
  • The recommended soldering temperature for PJ-081BH is 260°C (500°F) for a maximum of 10 seconds, as specified by Same Sky.
