PJ-202B - Same Sky

Description: 2.5 x 6.5 mm, 2.5 A, Horizontal, Through Hole, Kinked Pins, Dc Power Jack Connector

Download PJ-202B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PJ-202B - Same Sky - PCB symbol
click to zoom
PCB Footprints

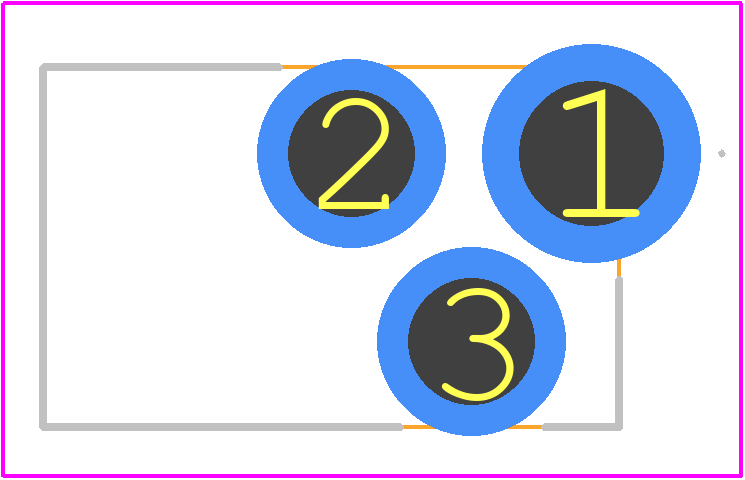

PJ-202B - Same Sky PCB footprint - Other - Other - PJ-202B-2
click to zoom
3D Models
PJ-202B - Same Sky - 3D model - Other - PJ-202B-2
click to zoom

PJ-202B Details

  • Manufacturer Part Number:

    PJ-202B

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Same Sky

  • YTEOL:

    6.25

  • Body Breadth:

    0.43 inch

  • Body Depth:

    0.57 inch

  • Body Length:

    0.35 inch

  • Body/Shell Style:

    JACK

  • Connector Type:

    DC POWER JACK

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Material:

    NOT APPLICABLE

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Option:

    GENERAL PURPOSE

  • Pin Diameter:

    2.5 mm

  • Rated Current (Power):

    2.5 A

  • Rated Voltage:

    24 V

  • Reference Standard:

    UL

  • Termination Type:

    SOLDER

PJ-202B Frequently Asked Questions (FAQs)

  • A good PCB layout for the PJ-202B involves keeping the input and output traces separate, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a common mode choke or ferrite bead to filter out high-frequency noise.
  • To ensure proper decoupling, place a 10uF to 22uF ceramic capacitor between the VIN pin and GND pin, and a 100nF to 1uF ceramic capacitor between the VOUT pin and GND pin. This will help filter out high-frequency noise and ensure stable operation.
  • The PJ-202B can handle input voltages up to 6.5V, but it's recommended to keep the input voltage below 5.5V for optimal performance and to prevent overheating.
  • The PJ-202B is rated for operation up to 85°C, but it's recommended to derate the output current and input voltage at higher temperatures to prevent overheating and ensure reliable operation.
  • To troubleshoot issues with the PJ-202B, check the input voltage, output voltage, and output current. Verify that the input voltage is within the recommended range, and that the output voltage is within the specified tolerance. Also, check for any signs of overheating, such as excessive temperature or burning smells.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PJ-202B Overview

Use the download button to access the PJ-202B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PJ-20, or try a keyword search, such as DC Power Plugs or Jacks

About Same Sky

CUI Devices is an electronic components manufacturer that specializes in audio components, interconnects, motion, relay, switch and thermal management solutions. The company designs and manufacturers components for use in a wide range of industries that include aerospace, industrial, medical, and telecommunications. CUI Devices is headquartered in Lake Oswego, Oregon.
